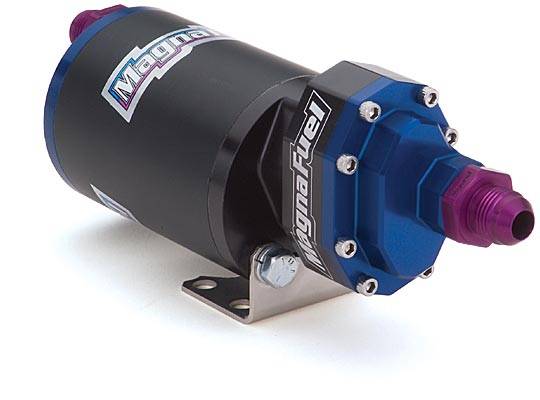

Magnafuel MP-4301 ProTuner 625 Electric Inline Fuel Pump
MRF-MP-4301
Pricing:
$489.99
Description
MagnaFuel ProTuner 625 - Supports up to 1500 HP
One-piece design is more
compact and light weight.
•Ideal for street muscle cars
•Quiet operation
•Self priming
•Continuous duty
•No pump shaft seals, no leaks
•Pump body CNC machined aircraft aluminum
•High-torque custom motor with very low current draw.
Never requires stepdown
•More efficient than other motors
•Double support bearings
•Rebuildable to as-new condition
•Compact design fits in smaller spaces
•Smaller than competitive pumps, lower current draw, more powerful
•Hard anodized, long lasting finish
•Mounting bracket included
•Vertical or horizontal mount
•Polymer wear plates for smooth, quieter operation
Specifications
| Model | ProTuner 625 |
| Part Number | MP-4301 |
| Horsepower Rating | 1500 HP - N/A |
| Pressure | 20 - 120 psi |
| Amps @ 12.5V | 12 amps @ 45 psi |
| Ports | -8 AN Inlet / -8 AN Outlet |
| Dimensions | 7" Length, 3" Diameter |
| Weight | 4.5lbs |
*Horsepower Ratings are for Naturally Aspirated engines running gasoline. Actual Horsepower capability will depend on Power Adder type and Fuel type.
