Diamond Pro Select 09053582 - AP Steel Piston Rings 1.5mm x 1.5mm x 3mm - 3.582" Bore

(0) Reviews: Write first review

SKU: DIA-09053582

Fits 2019 and earlier Diamond 4.6L / 5.4L and Mod2K .030" Over Bore Pistons

Pricing: $333.41

Description
Details
Shipping
Reviews

Description

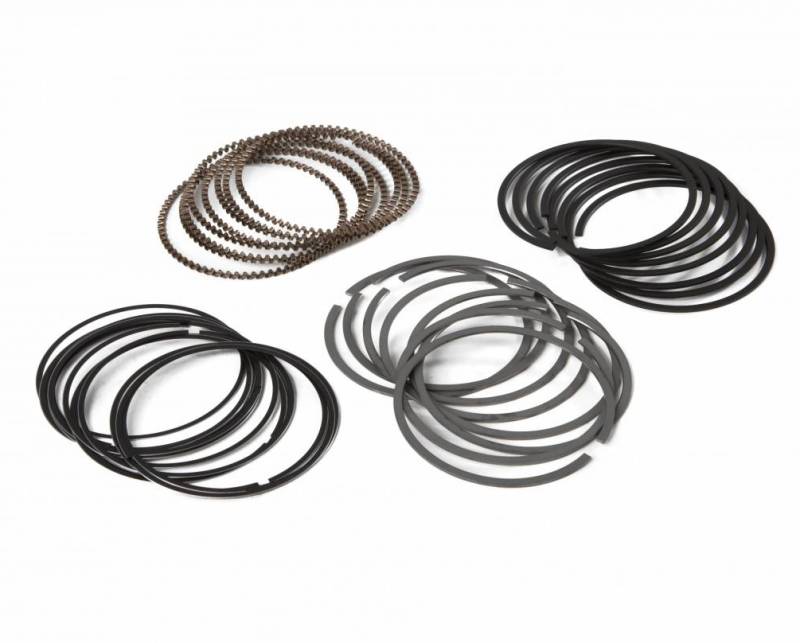

Diamond Pro Select 09053582 - AP Steel Piston Rings for Ford 4.6L / 5.4L - .030" Over Bore

This Diamond Pro Select Piston Ring Set includes AP Steel Top Rings, which we highly recommend for all Forced Induction and Nitrous applications. The 0905 Prefix Rings fit 2019 and earlier Diamond Piston Part Numbers for the 4.6L / 5.4L and the newer Mod2K line of Pistons. These will not fit the newer 4.6L / 5.4L Competition Series Pistons.

Part Number	09053582
Bore	3.582"
Top Ring Axial Height	1.5mm / 0.0585"
Top Ring Radial Width	0.150"
Top Ring Type	AP Steel - C33 PVD Coated
2nd Ring Axial Height	1.5mm / 0.0585"
2nd Ring Radial Width	0.157"
2nd Ring Type	Reverse Back Twist - Cast Iron
Oil Ring Axial Height	3.0mm / 0.118"
Oil Ring Radial Width	0.145"
Oil Ring Type	3 Piece
Oil Ring Tension	Low 11lbs +/-
File to Fit?	Yes - Must file to fit
Quantity	Set of 8
