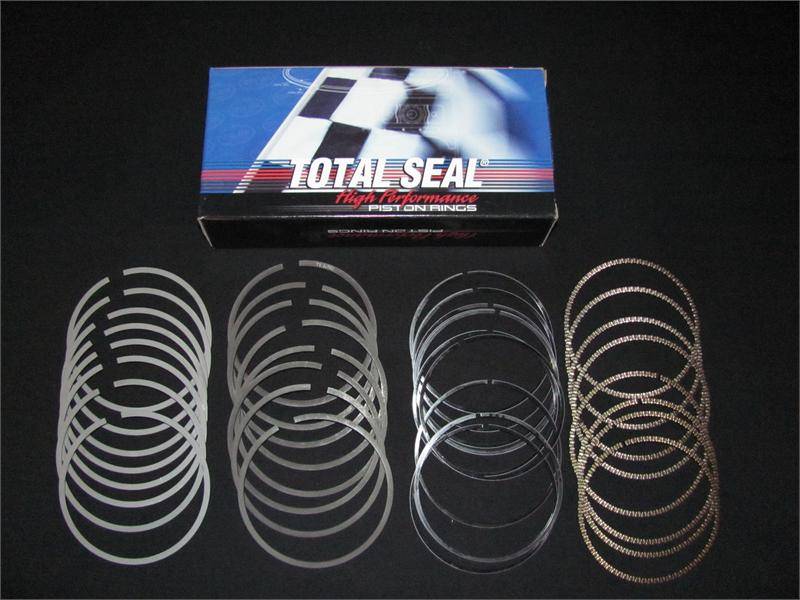

Total Seal CS8264-35 - Advanced Profiling Stainless Steel Piston Ring Set 1.5mm x 1.5mm x 3mm, 3.582" Bore

TOT-CS8264-35
3.582" Bore, 1.5mm x 1.5mm x 3mm, Low Tension Oil 11lb +/-
Pricing: $352.82
Qty:

Description

The Total Seal AP Advanced Profiling Piston Ring Sets are highly recommended for Forced Induction and Nitrous applications. These Piston Ring Sets include a AP Steel Top Ring that has been coated using Total Seal's PVD Applied C-33 Chromium Nitride (CrN) Anti-Friction Coating. The C-33 Coating is easy on cylinder walls while the Steel Top Ring still  has the ability to handle extreme pressures. Reverse Torsional Tapered Face 2nd Rings and 3 Piece Stainless Oil Control Rings are come standard with the AP Steel Ring Set.




Specifications

Part Number  CS8264-35
Bore  3.582"
Groove Sizes  1.5mm x 1.5mm x 3mm
Top Ring AP Steel - C33 Coated  Chromium Nitride CrN
Second Ring Reverse Torsional Taper Face - Cast Iron
Oil Ring  3 Piece, Low Tension, 11lb +/-
Ring Set Style  Conventional
File to Fit   Yes



Details

  • TOT-CS8264-35
  • TOT-CS8264-35
  • Total Seal
  • New

Categories

Shipping Information

  • Item Requires Shipping
  • 5.0 lbs.
  • W6.0000” x H4.0000” x L10.0000”
