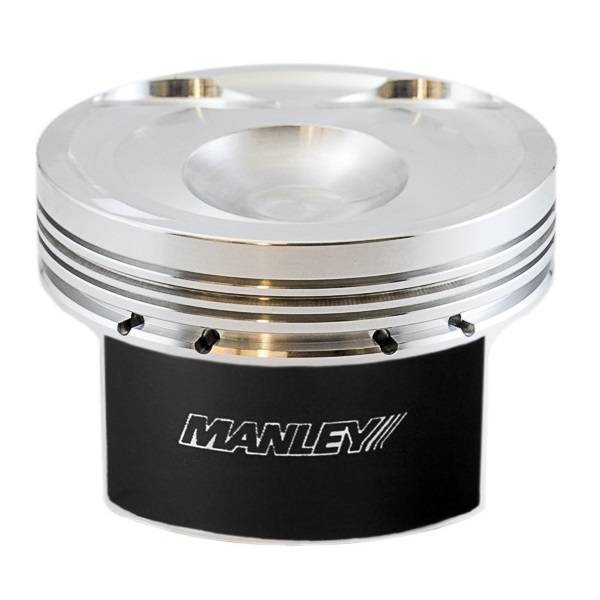

Manley 594910CE-6 Extreme Duty Series Ford 3.5L EcoBoost Pistons -0.5cc Dome, 3.652" Bore
MAN-594910CE-6
10:1 Compression Ratio
Was:
$820.00
Sale:
$779.00
Save:
5%
Save:
$41.00
Description
Compression Ratio: 10.0:1
- 2618 High Strength Material, Lightweight Design
- Offset Wrist Pin Location for Quiet Startups - Mimics OEM Design
- Perfect Ring Groove to Skirt Squareness
- Pressure Balance Groove
- Extreme Duty 9310 Alloy .210" Wall Wrist Pins included with Round Wire Locks
- Will accommodate +1mm Oversize Valves
- 1.2mm x 1.2mm x 2.5mm Ring Stack
Specifications
| Part Number | 594910CE-6 |
| Bore | 3.652" |
| Dish / Dome Volume | -0.5cc Dome |
| Compression Height | 1.239" |
| Stroke | 3.413" |
| Rod Length | 6.011" |
| Wrist Pin | .866" x 2.500" x .210" Wall |
| Wrist Pin Material | 9310 Endurance Alloy |
| Piston Weight | N/A |
| Ring Stack | 1.2mm x 1.2mm x 2.5mm |
| Piston Ring Set (Sold Separately) | 46652ST-6 |
Details
- MAN-594910CE-6
- MAN-594910CE-6
- Manley
- New
Categories
Shipping Information
- Item Requires Shipping
- 8.0 lbs.
- W10.0000” x H10.0000” x L10.0000”
- Free Shipping!
