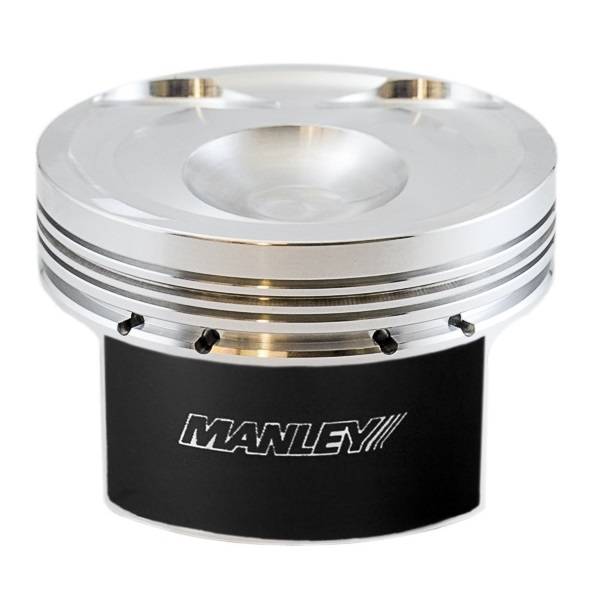

Manley 599520CE-6 Extreme Duty Series Ford 3.7L Cyclone Pistons -5.0cc Dish, 3.780" Bore
MAN-599520CE-6
9.5:1 Compression Ratio
Pricing:
$820.00
Description
Compression Ratio: 9.5:1
- 2618 High Strength Material, Lightweight Design
- Offset Wrist Pin Location for Quiet Startups - Mimics OEM Design
- Perfect Ring Groove to Skirt Squareness
- Pressure Balance Groove
- Extreme Duty 9310 Alloy .210" Wall Wrist Pins included with Round Wire Locks
- Will accommodate +1mm Oversize Valves
- 1.2mm x 1.2mm x 2.5mm Ring Stack
Specifications
| Part Number | 599520CE-6 |
| Bore | 3.780" |
| Dish / Dome Volume | -5.0cc Dish |
| Compression Height | 1.239" |
| Stroke | 3.413" |
| Rod Length | 6.011" |
| Wrist Pin | .866" x 2.500" x .210" Wall |
| Wrist Pin Material | 9310 Endurance Alloy |
| Piston Weight | 428 grams |
| Ring Stack | 1.2mm x 1.2mm x 2.5mm |

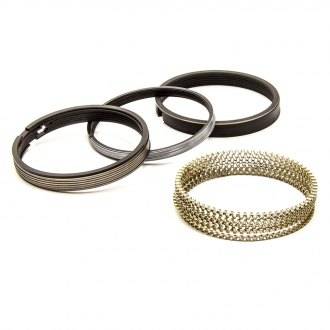

| Piston Ring Set (Sold Separately) | 46780ST-6 |
Details
- MAN-599520CE-6
- MAN-599520CE-6
- Manley
- New
Categories
Shipping Information
- Item Requires Shipping
- 8.0 lbs.
- W10.0000” x H10.0000” x L10.0000”
- Free Shipping!
