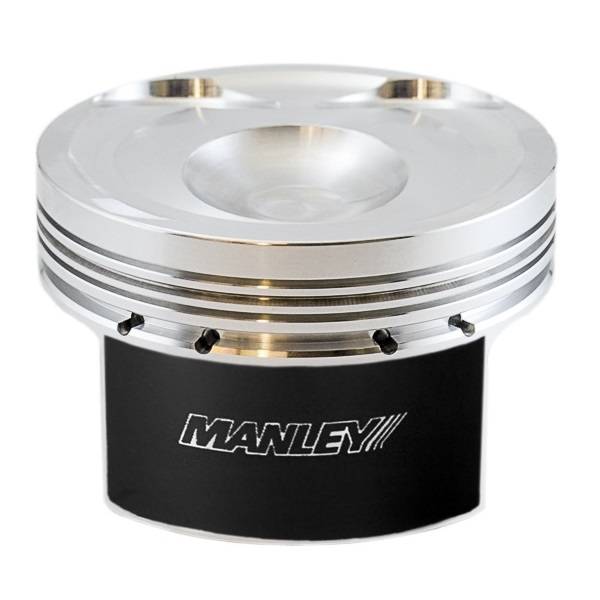

Manley 599600C-6 Platinum Series Ford 3.7L Cyclone Pistons +2.0cc Dome, 3.760" Bore
MAN-599600C-6
10.5:1 Compression Ratio
Was:
$680.00
Sale:
$646.00
Save:
5%
Save:
$34.00
Description
Compression Ratio: 10.5:1
- 2618 High Strength Material, Lightweight Design
- Offset Wrist Pin Location for Quiet Startups - Mimics OEM Design
- Perfect Ring Groove to Skirt Squareness
- Pressure Balance Groove
- Premium 4130 Chrome Moly .180" Wall Wrist Pins included with Round Wire Locks
- Will accommodate +1mm Oversize Valves
- 1.2mm x 1.2mm x 2.5mm Ring Stack
Specifications
| Part Number | 599600C-6 |
| Bore | 3.760" |
| Dish / Dome Volume | +2.0cc Dome |
| Compression Height | 1.239" |
| Stroke | 3.413" |
| Rod Length | 6.011" |
| Wrist Pin | .866" x 2.500" x .180" Wall |
| Wrist Pin Material | 4130 Chrome Moly |
| Piston Weight | 426 grams |
| Ring Stack | 1.2mm x 1.2mm x 2.5mm |
| Piston Ring Set (Sold Separately) | 46760ST-6 |
