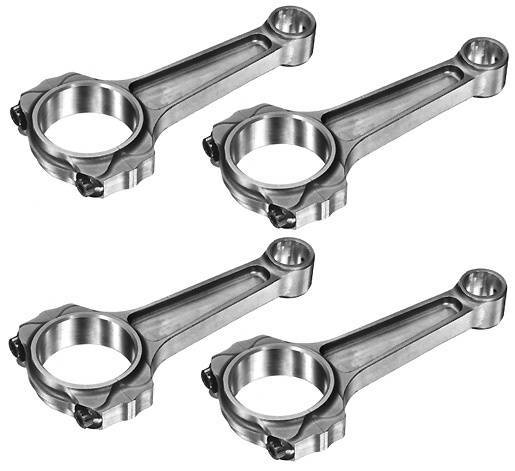

Manley 14434-4 2.3L EcoBoost Pro Series Turbo Tuff Billet I-Beam Connecting Rods
MAN-14434-4
Suggested for applications up to 1000 HP
Pricing:
$1,028.90
Description
- Forged from 4340 aircraft quality vacuum degassed material
- Shot peened after machining to MIL spec and 100% individually magnafluxed
- Specifically designed to handle high horsepower applications when using turbos and/or nitrous
- Supplied with 3/8" ARP 2000 Rod Bolts
- Recommended for applications up to 1000 HP
The Manley Pro Series Turbo Tuff I-Beam Connecting Rods are the ultimate rods available for the 2.3L EcoBoost. These Rods have a heavy beam design and are capable of handling insane amounts of boost and / or nitrous.
Specifications
| Part Number | 14433-4 |
| Application | 2.3L EcoBoost |
| Length | 5.875" |
| Big End Bore | 2.167" |
| Wrist Pin | .886" / 22.5mm |
| Wrist Pin Bore | .8868" |
| Big End Width | .860" |
| Pin End Width | .860" |
| Rod Bolts | 3/8" ARP 2000 |
| Gram Weight | 605g |
Details
- MAN-14434-4
- MAN-14434-4
- Manley
- New
Categories
Shipping Information
- Item Requires Shipping
- 10.0 lbs.
- W8.0000” x H6.0000” x L12.0000”
- Free Shipping!
