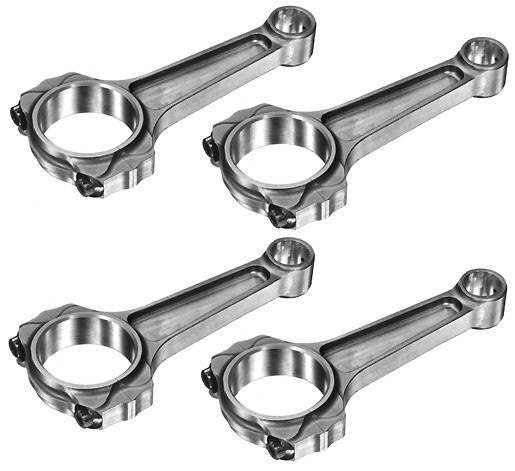

Manley 14434R6-4 2.3L EcoBoost Pro Series Turbo Tuff Billet I-Beam Connecting Rods - ARP 625+ Rod Bolts

(0) Reviews: Write first review
MAN-14434R6-4
Suggested for applications up to 1000+ HP
Not Available
Pricing: $1,281.42

Description

  • Forged from 4340 aircraft quality vacuum degassed material
  • Shot peened after machining to MIL spec and 100% individually magnafluxed
  • Specifically designed to handle high horsepower applications when using turbos and/or nitrous
  • Supplied with  3/8" ARP 625+ Rod Bolts
  • Recommended for applications up to 1000+ HP

The Manley Pro Series Turbo Tuff I-Beam Connecting Rods are the ultimate rods available for the 2.3L EcoBoost. These Rods have a heavy beam design and are capable of handling insane amounts of boost and / or nitrous.

Specifications



Part Number  14434R6-4
Application  2.3L EcoBoost
Length    5.875"
Big End Bore    2.167"
Wrist Pin  .886" / 22.5mm
Wrist Pin Bore  .8868"
Big End Width   .860"
Pin End Width   .860"
Rod Bolts  3/8" ARP 625+
Gram Weight   605g
