Injector Dynamics ID1300 1300cc Injectors - 48mm Length

(0) Reviews: Write first review

SKU: IDX1300.48.14.14.8

Fits GT500 Only

Pricing: $1,890.00

Description
Details
Shipping
Reviews

Description

Injector Dynamics 1300cc Fuel Injectors - 48mm Length

Fits Shelby GT500 Only

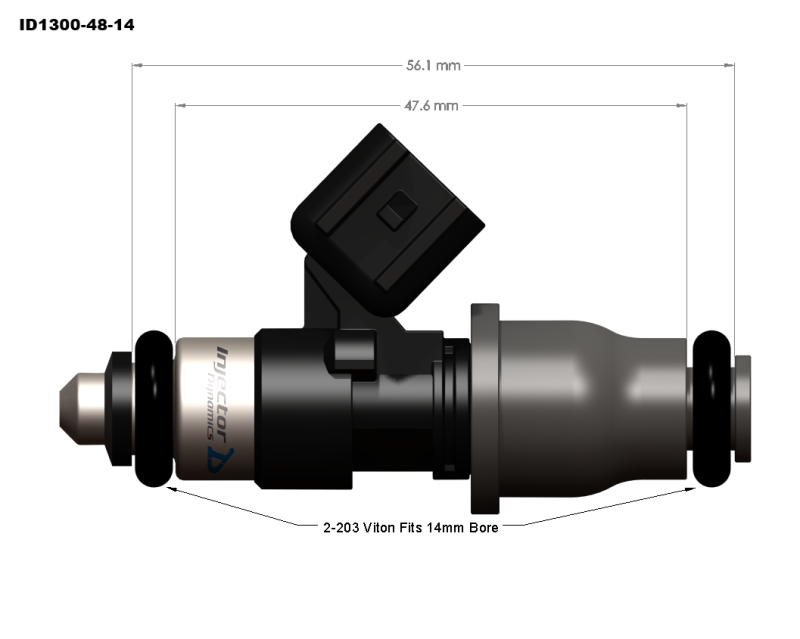

EV-14 Body, 48mm Length / 14mm Bore
High Impedence - Compatible with Factory ECU
Sold as a Set of 8

Basic Specifications

Nominal Flow Rate – 1340cc/min @ 3.0 Bar (43.5 psi) Using Iso Octane at 52 Degrees C (125 Degrees F)

Maximum Differential Fuel Pressure – 6.0 Bar (87.0 psi)

Fuel Compatibility – Compatible With All Known Fuels – (Designed Specifically for Alternative Fuels)

Electrical Connector – USCAR

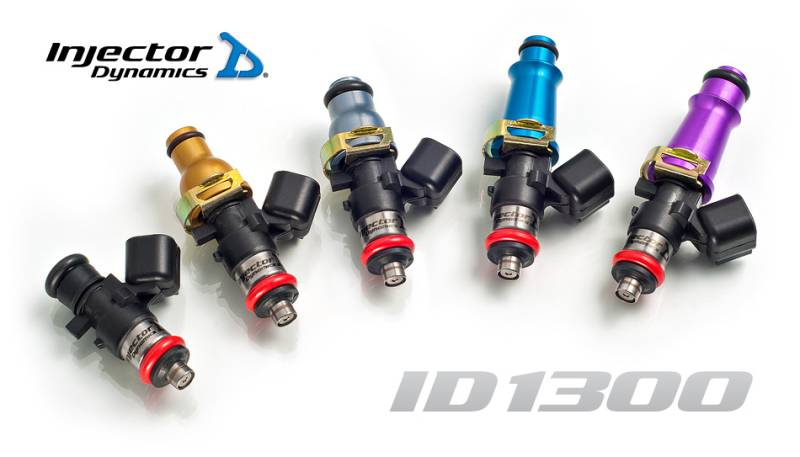

The ID1300 is an all new injector, designed in partnership with Bosch Motorsport. This collaboration has given us the ability to design a high flow injector with characteristics specific to the needs of the motorsport tuner. The ID1300 was designed with alternative fuels in mind, and is the only performance injector available with all stainless internals. It is compatible with all known fuels, and will stand up to the corrosive nature of alcohol better than any injector on the market. While the ID1300 was designed with an eye towards ethanol fueled engines, we have accounted for the occasional need to convert back to gasoline. The ID1300 has a minimum fuel mass compatible with gasoline use, and will provide exceptional idle and cruise behavior under these conditions. In addition to its multi-fuel capabilities, the compact body of the ID1300 allows fitment in 200+ applications, making it the most versatile injector in our lineup.

The first injector offered with full dynamic characterization providing tuners with the data they needed to do their job properly.
The first injector to be offered in dead time matched sets.
The first high impedance high flow injector available providing stock idle and drivability on engines as small as 325cc per cylinder.
The first injector offered with the now standard "Top Hat Adapter" making it plug and play in nearly any application.
