DeatschWerks 88lb Fuel Injectors - Set of 8

(0) Reviews: Write first review

SKU: DW-18U-01-0088-8

Pricing: $639.00

Description
Specifications
Flow Rate
Battery Offset
Details
Shipping
Reviews

Description

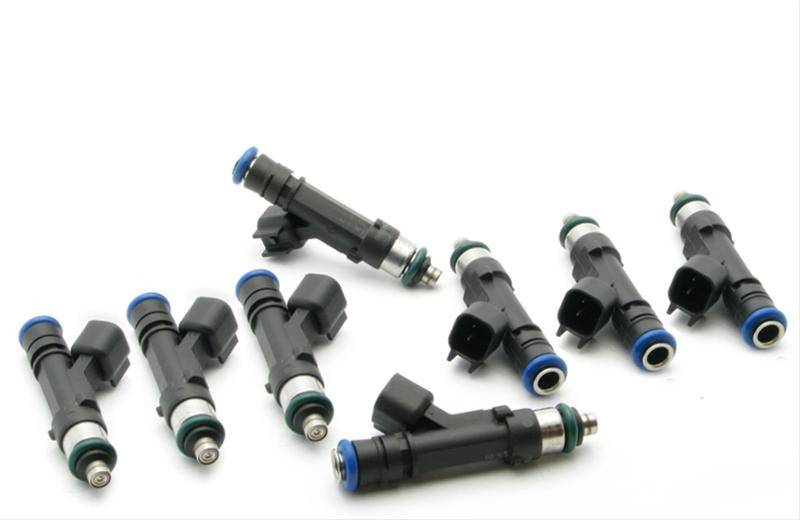

DeatschWerks 88lb/hr Fuel Injectors - Set of 8

Fits all Mustangs 1996 - 2004 except GT500
E85 compatibility
Flow rates and set balancing in-house by DeatschWerks
Flow balanced to within 1-2% (flow report included)
Excellent spray pattern and atomization for optimized idle and tuning
Technical assistance and tuning data available via phone or email
3-year comprehensive warranty
USCAR Connector

1996 - 2004 Mustang and 1996 - 1998 Cobra will need to use a Jetronic / Minitimer to USCAR Adapter.

Specifications

Fuel Pressure Range	40 - 90 psi
Minimum Pulse Width	1.0 ms
Maximum Duty Cycle	93%
Coil Impedance	12.4 ohm
Injector Type	Bosch EV14 (Long)
Connector Type	USCAR

Flow Rate

Nominal Static Flow Rate

PSI >	43	58	70	80	90	100
cc/min	907	1116	1221	1320	1413	1479
lb/hr	86.4	106.3	116.3	125.7	134.6	140.9

Please note: Flow rates listed are the nominal (normal minimum) rates for this injector part number. All sets are flow balanced. For actual flow rates of your set, please refer to the flow report that will accompany your order

.

Battery Offset

Offset in Milliseconds (Pressure vs Voltage)

PSI > VOLTS v	43	58	70	80	90	100
8	2.62	2.84	3.15	3.33	3.55	3.73
9	2.26	2.48	2.72	2.88	3.08	3.23
10	1.93	2.15	2.33	2.47	2.65	2.78
11	1.64	1.86	2.00	2.11	2.28	2.39
12	1.39	1.60	1.70	1.80	1.95	2.06
13	1.18	1.37	1.45	1.55	1.70	1.77
14	0.99	1.17	1.25	1.34	1.46	1.54
15	0.85	1.00	1.10	1.18	1.29	1.36
16	0.74	0.86	0.98	1.06	1.16	1.24
