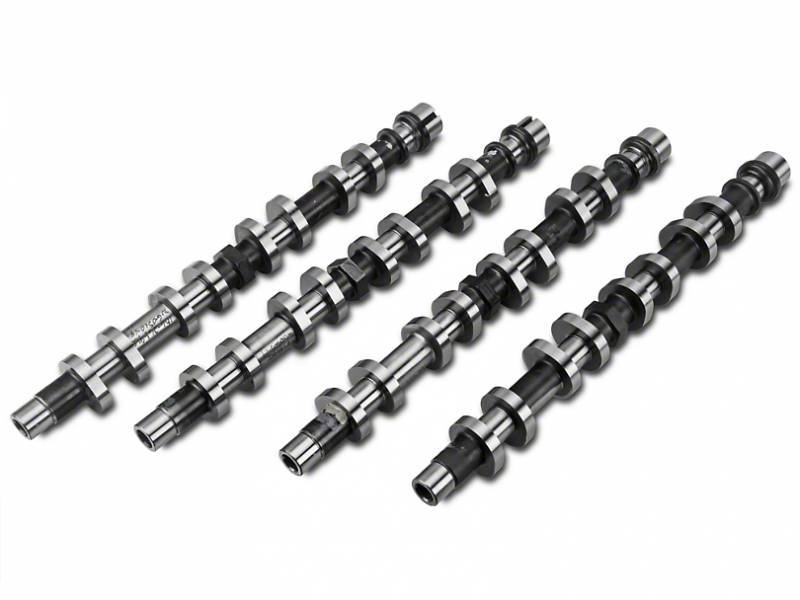

MHS 4.6L / 5.4L 4V Stage 5 Blower Camshafts

Modular Head Shop
Click on image to zoom
Upgraded Springs required.
Pricing: $1799.00
Qty:
Free Shipping!
MHS-4V-STG5-B
  • MHS-4V-STG5-B
    • (0) Reviews: Write first review

    Description

    Part Number  MHS-4V-STG5-B
    Name  4V Stage 5 Blower
    Duration @ .050"  240 / 244
    Lift  .480" / .480"
    Lobe Sep Angle  115 + 5
    Center Lines  110 / 120
    Springs Required?  Yes
    Suggested Valve Springs  MHS / PAC Stage 3 or Stage 4
    Valve Reliefs Required?   Yes

    Designed for larger Centrifugal superchargers turning serious RPM. Built Bottom End, Ported Cylinder Heads, Short Runner or Sullivan Intake Manifold needed. Single Groove Valves recommended due to RPM range. Max effort limited street and race applications. Automatic Trans w/ 4500 - 5000 stall and 4.30 or 4.56 gears recommended. Works best with Procharger F1X, Vortec YSi or Whipple 3.4L. Shift points will be around 7800 - 8000 RPM. Will support over 1000 WHP. Rough idle.
