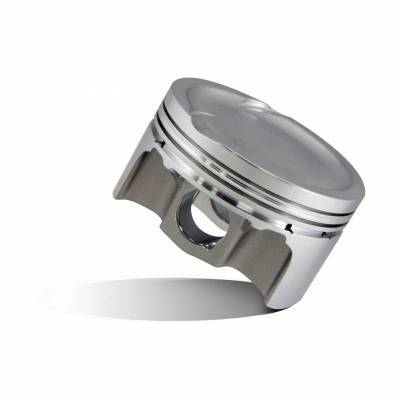

JE Pistons 314677 - Ford 5.4L 3V FSR Pistons -19.7cc Dish, 3.552" Bore, 4.165" Stroke, 6.657" Rod Length, 1.320" CD, .866" Pin

Click on image to zoom
9.5:1 Compression Ratio
Pricing: $970.84
Qty:
Free Shipping!
JEP-314677
  • JEP-314677
  • Description



    Part Number  314677
    Application Ford Modular 5.4L 3V
    Bore  3.552"
    Cubic Inch  330 CI
    Stroke  4.165"
    Rod Length  6.657"
    Compression Height  1.320"
    Piston Volume -19.7cc
    Piston Skirt Design  Strutted - Forged Side Relief
    Piston Average Weight  344g
    Compression Ratio 9.5:1
    Included Wrist Pin 866-2250-15-51C
    Wrist Pin Material  5115 Alloy
    Wrist Pin Dimension  .866" x 2.250" x .150" Wall - 98g
    Optional Wrist Pin Upgrade 866-2250-23-93C
    Optional Wrist Pin Material  9310 Alloy
    Optional Wrist Pin Dimesions .866" x 2.250" x .230" Wall - 132g
    Ring Stack  1.2mm x 1.5mm x 3mm
    Recommended Piston Ring Set  JG3208-3551-0
    Recommended Piston Ring Details  Gas Nitrided Steel Top, Cast Iron 2nd, Low Tension Oil

    These JE FSR Pistons are specifically designed for high horsepower Ford Modular applications. The new FSR - Forged Side Relief strutted forging allows for a good amount of weight savings while adding material where it's needed for extra strength. This particular set of Pistons fits the 5.4L 3V Engine and has valve reliefs to accommodate aftermarket camshafts. The 5.4L specific pistons have a raised compression height bringing the piston crown closer to the top of the deck. The stock 5.4L pistons sit down in the bore around .120" which is not very efficient. By bringing the crown of the piston closer to the deck of the block, combustion efficiency and flame travel is significantly improved. Supplied with .150" Wall 5115 Alloy Wrist Pins. Optional .230" Wall 9310 Alloy Wrist Pins available as an upgrade and suggested for 700 + HP.
