JE Pistons 314689 - Ford 5.4L 4V FSR Pistons -28.6cc Dish, 3.572" Bore, 4.165" Stroke, 6.657" Rod Length, 1.320" CD, .866" Pin

(0) Reviews: Write first review

SKU: JEP-314689

8.5:1 Compression Ratio

Pricing: $970.84

Description
Details
Shipping
Reviews

Description

Part Number	314689
Application	Ford Modular 5.4L 4V
Bore	3.572"
Cubic Inch	334 CI
Stroke	4.165"
Rod Length	6.657"
Compression Height	1.320"
Piston Volume	-28.6cc
Piston Skirt Design	Strutted - Forged Side Relief
Piston Average Weight	346g
Compression Ratio	8.5:1
Included Wrist Pin	866-2250-15-51C
Wrist Pin Material	5115 Alloy
Wrist Pin Dimension	.866" x 2.250" x .150" Wall - 98g
Optional Wrist Pin Upgrade	866-2250-23-93C
Optional Wrist Pin Material	9310 Alloy
Optional Wrist Pin Dimesions	.866" x 2.250" x .230" Wall - 132g
Ring Stack	1.2mm x 1.5mm x 3mm
Recommended Piston Ring Set	JG3208-3571-0
Recommended Piston Ring Details	Gas Nitrided Steel Top, Cast Iron 2nd, Low Tension Oil

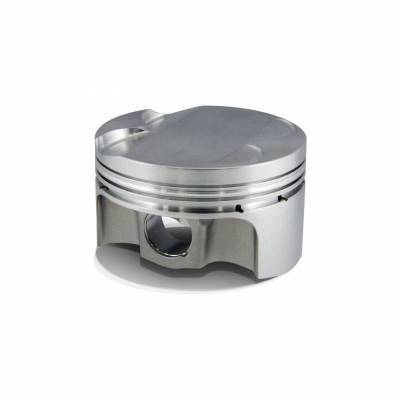

These JE FSR Pistons are specifically designed for high horsepower Ford Modular applications. The new FSR - Forged Side Relief strutted forging allows for a good amount of weight savings while adding material where it's needed for extra strength. This particular set of Pistons fits the 5.4L 4V Engine and has valve reliefs to accommodate aftermarket camshafts. The 5.4L specific pistons have a raised compression height bringing the piston crown closer to the top of the deck. The stock 5.4L pistons sit down in the bore around .120" which is not very efficient. By bringing the crown of the piston closer to the deck of the block, combustion efficiency and flame travel is significantly improved. Supplied with .150" Wall 5115 Alloy Wrist Pins. Optional .230" Wall 9310 Alloy Wrist Pins available as an upgrade and suggested for 700 + HP.
