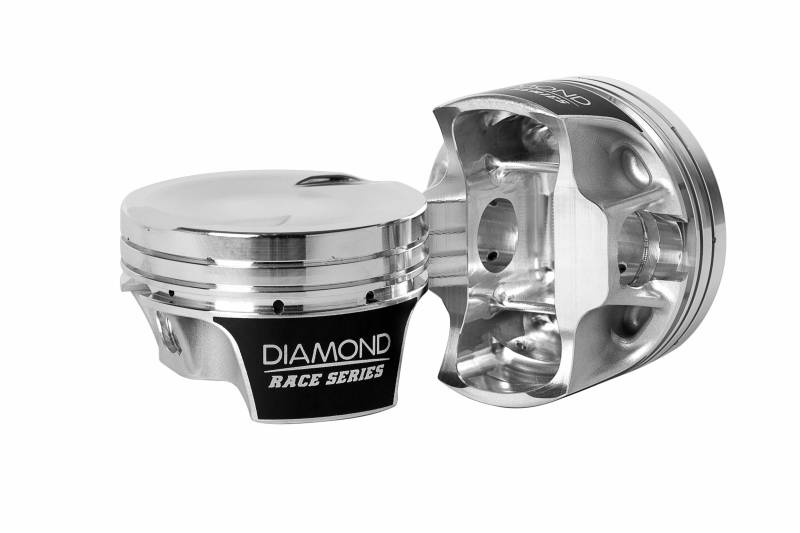

Diamond 30300-RS - Mod2k Race Series Piston / Ring Set for Ford 4.6L 2V TFS Heads -9.5cc Dish, 3.552" Bore, 3.543" Stroke, 1.220" CD

(0) Reviews: Write first review
DIA-30300-RS
Pricing: $1,279.94

Customize Your Item

- Add Ceramic Dome Coating? -
- Upgrade to Napier 2nd Rings -
Qty:
Free Shipping!

Description

Diamond's all new Mod2k Race Series Pistons for the Ford 4.6L / 5.4L 2V with Trick Flow Twisted Wedge Heads are the absolute best pistons available on the market! These Pistons feature a lightweight, yet super strong, strutted forging with all the upgrades needed to support well over 1500 HP.

Features:

  • 2618 Alloy Strutted Forging
  • Additional Pin Boss Struts for added strength
  • .325" Down Top Ring Land
  • .180" Intake / .100" Exhaust Valve Reliefs
  • Lateral Gas Ports for better ring seal
  • Moly Coated Skirts
  • Trend Performance .225" Wall H-13 Wrist Pins
  • Total Seal AP Steel Piston Ring Set - Napier 2nd upgrade optional

Specifications:

Part Number   30300-RS
Piston Material   2618 Aluminum Alloy
Fitment   4.6L 2V with TFS Heads
Piston Volume  -9.5cc Dish
Bore  3.552" - Standard Bore
Stroke  3.543" - Standard Stroke
Rod Length  5.933" - Standard Length
Compression Height  1.220"
Wrist Pin Dimesions .866" x 2.250" x .225" Wall
Wrist Pin Material  H-13 Tool Steel
Included Piston Ring Set  09053552



Compression Ratios

Compression Ratios figured with 3.650" Bore x .039" Thick Head Gasket and .010" Deck Clearance

   38cc       44cc
11.3:1  10.3:1
