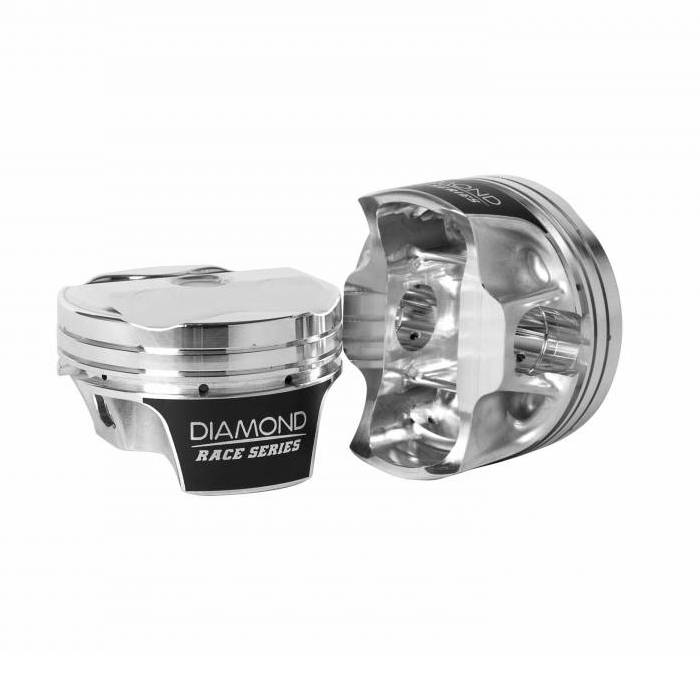

Diamond 30336-RS - Mod2k Race Series Piston / Ring Set for Ford 5.0L Coyote +5.0cc Dome, 3.630" Bore

(0) Reviews: Write first review

SKU: DIA-30336-RS

Approx 11.2:1 Compression Ratio

Pricing: $1,226.43

Customize Your Item

Add Ceramic Dome Coating?

- Add Ceramic Dome Coating? -

Upgrade to Napier 2nd Rings

- Upgrade to Napier 2nd Rings -

Qty:

Free Shipping!

Description
Details
Shipping
Reviews

Description

Diamond's all new Mod2k Race Series Pistons for the Ford 5.0L Coyote Engine are the absolute best pistons available on the market! These Pistons feature a lightweight, yet super strong, strutted forging with all the upgrades needed to support up to 2000 HP right out of the box!

Features:

2618 Alloy Strutted Forging
Additional Pin Boss Struts for added strength
.325" Down Top Ring Land
.100" Intake / .100" Exhaust Valve Reliefs - Trough Style
Lateral Gas Ports for better ring seal
Moly Coated Skirts
Trend Performance .225" Wall H-13 Wrist Pins
Total Seal AP Steel Piston Ring Set - Napier 2nd upgrade optional

Compression Ratio: 11.2:1
Compression ratio calculated with 3.700" Bore / .040" Compressed Thickness
Head Gasket with .010" Piston to Deck Clearance

Specifications:

Part Number	30336-RS
Piston Material	2618 Aluminum Alloy
Fitment	5.0L Gen 1 and Gen 2
Piston Volume	+5.0cc Dome
Bore	3.630"
Stroke	3.650"
Rod Length	5.933"
Compression Height	1.169"
Wrist Pin Dimesions	.866" x 2.250" x .225" Wall
Wrist Pin Material	H-13 Tool Steel
Included Piston Ring Set	09053630
