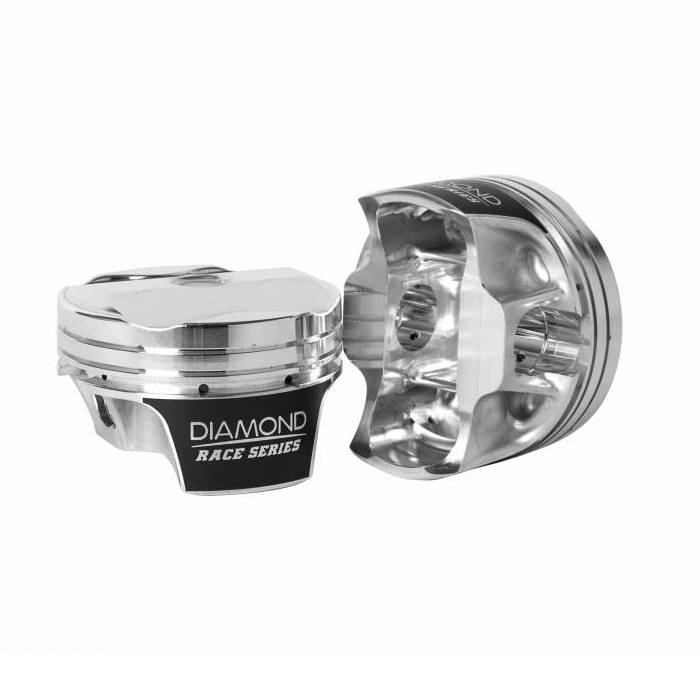

Diamond 30341-RS - Mod2k Race Series Piston / Ring Set for Ford 5.0L Coyote +1.8cc Dome, 3.635" Bore
DIA-30341-RS
Approx 10.7:1 Compression Ratio
Pricing:
$1,226.43
Description
Diamond's all new Mod2k Race Series Pistons for the Ford 5.0L Coyote Engine are the absolute best pistons available on the market! These Pistons feature a lightweight, yet super strong, strutted forging with all the upgrades needed to support up to 2000 HP right out of the box!
Features:
- 2618 Alloy Strutted Forging
- Additional Pin Boss Struts for added strength
- .325" Down Top Ring Land
- .100" Intake / .100" Exhaust Valve Reliefs - Trough Style
- Lateral Gas Ports for better ring seal
- Moly Coated Skirts
- Trend Performance .225" Wall H-13 Wrist Pins
- Total Seal AP Steel Piston Ring Set - Napier 2nd upgrade optional
Compression Ratio: 10.7:1
Compression ratio calculated with 3.700" Bore / .040" Compressed Thickness
Head Gasket with .010" Piston to Deck Clearance
Specifications:
| Part Number | 30341-RS |
| Piston Material | 2618 Aluminum Alloy |
| Fitment | 5.0L Gen 1 and Gen 2 |
| Piston Volume | +1.8cc Dome |
| Bore | 3.635" |
| Stroke | 3.650" |
| Rod Length | 5.933" |
| Compression Height | 1.169" |
| Wrist Pin Dimesions | .866" x 2.250" x .225" Wall |
| Wrist Pin Material | H-13 Tool Steel |
| Included Piston Ring Set | 09053630 |
