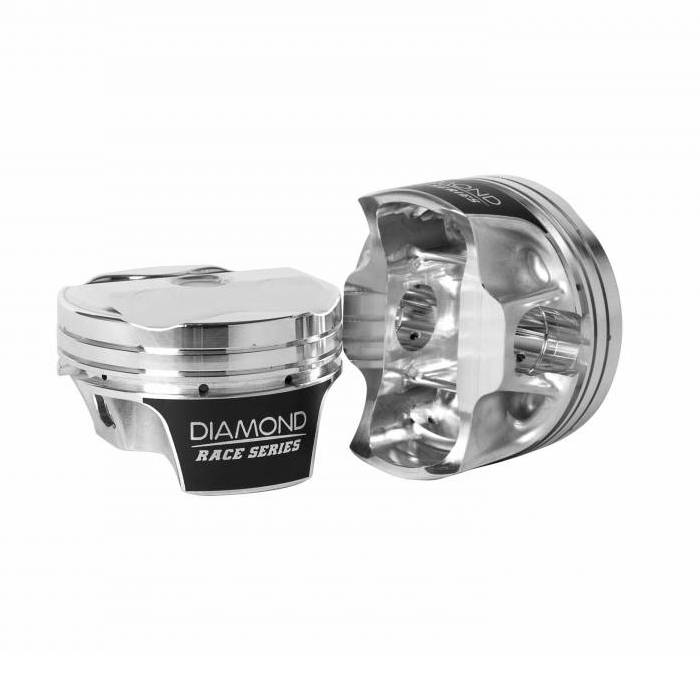

Diamond 30343-RS - Mod2k Race Series Piston / Ring Set for Ford 5.0L Coyote +1.8cc Dome, 3.650" Bore

Diamond Racing Products
Click on image to zoom
Approx 10.8:1 Compression Ratio
Pricing: $1226.43

Customize Your Item

- Add Ceramic Dome Coating? -
- Upgrade to Napier 2nd Rings -
Qty:
Free Shipping!
DIA-30343-RS
  • DIA-30343-RS
    • (0) Reviews: Write first review

    Description

    Diamond's all new Mod2k Race Series Pistons for the Ford 5.0L Coyote Engine are the absolute best pistons available on the market! These Pistons feature a lightweight, yet super strong, strutted forging with all the upgrades needed to support up to 2000 HP right out of the box!

    Features:

    • 2618 Alloy Strutted Forging
    • Additional Pin Boss Struts for added strength
    • .325" Down Top Ring Land
    • .100" Intake / .100" Exhaust Valve Reliefs - Trough Style
    • Lateral Gas Ports for better ring seal
    • Moly Coated Skirts
    • Trend Performance .225" Wall H-13 Wrist Pins
    • Total Seal AP Steel Piston Ring Set - Napier 2nd upgrade optional

    Compression Ratio: 10.8:1
    Compression ratio calculated with 3.700" Bore / .040" Compressed Thickness
    Head Gasket with .010" Piston to Deck Clearance

    Specifications:

    Part Number   30343-RS
    Piston Material   2618 Aluminum Alloy
    Fitment   5.0L Gen 1 and Gen 2
    Piston Volume  +1.8cc Dome
    Bore  3.650"
    Stroke  3.650"
    Rod Length  5.933"
    Compression Height  1.169"
    Wrist Pin Dimesions .866" x 2.250" x .225" Wall
    Wrist Pin Material  H-13 Tool Steel
    Included Piston Ring Set  09053650
