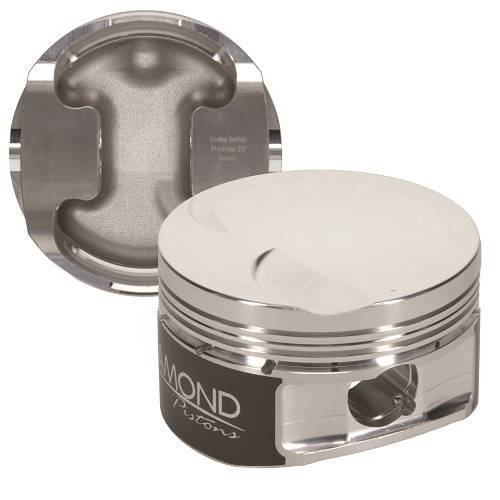

Diamond 30407-R1 Ford 4.6L 2V Competition Series Piston / Ring Kit -7.0cc Dish, 3.562" Bore

Click on image to zoom
11.2:1 Compression Ratio
Pricing: $917.97

Customize Your Item

8620 Alloy - .180" Wall
 * required
- Add Ceramic Dome Coating -
 * required
No Thanks
 * required
Qty:
Free Shipping!
DIA-30407-R1
  • DIA-30407-R1
  • Description



    Part Number  30407-R1
    Application Ford Modular 4.6L 2V PI
    Bore  3.562"
    Stroke  3.543"
    Rod Length  5.933"
    Compression Height  1.220"
    Piston Volume -7.0cc
    Valve Reliefs  2V PI Valve Reliefs - Will fit Oversize Valves
    Valve Relief Depths  .151" Intake / .050" Exhaust
    Compression Ratio - 42cc  11.2:1 Compression using 3.620" x .036" Gasket
    Ring Land Spacing  .280" x .180" x .080"
    Included Wrist Pin Trend G8662500180C
    Wrist Pin Material  8620 Alloy
    Wrist Pin Dimension  .866" x 2.500" x .180" Wall - 123g
    Optional Wrist Pin Upgrade Trend H8662500200C
    Optional Wrist Pin Material  H-13 Tool Steel
    Optional Wrist Pin Dimesions .866" x 2.500" x .200" Wall - 132g
    Ring Stack  1.2mm x 1.5mm x 3mm
    Included Piston Ring Set  09403562
    Included Piston Ring Details  Gas Nitrided Steel Top, Napier 2nd, 3 Piece Oil

    The Diamond 4.6L Competition Series Pistons are designed for moderate to high horsepower forced induction applications and are a great choice for Street / Strip applications up to 1400 HP. These Pistons come with Trend .180" Wall 8620 Wrist Pins, Moly Skirt Coating and a Steel Top, Napier 2nd Ring set. We recommend upgrading to the H-13 Pins around the 900 HP mark. The 8260 Pins will not break, but they will begin to flex at some point and are not as rigid as the H-13 heavier wall pins. We recommend this for the simple fact that wrist pin flex will wear out both the Pin Bore and the Connecting Rod Bushing.

    Optional Upgrades:

    • H-13 Tool Steel Pins
    • Ceramic Dome Coating
