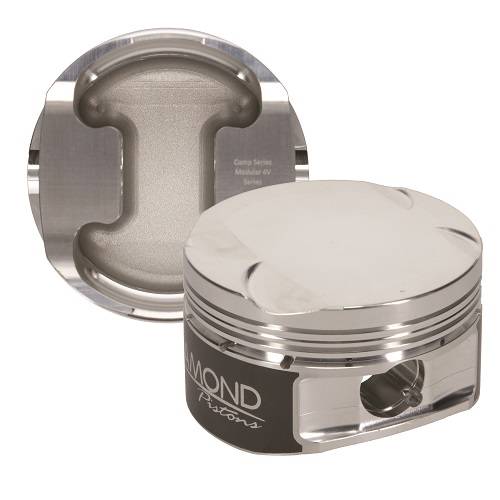

Diamond 30422-R1 Ford 4.6L 4V Competition Series Piston / Ring Kit -11.5cc Dish, 3.562" Bore

(0) Reviews: Write first review

SKU: DIA-30422-R1

9.1:1 Compression Ratio

Pricing: $917.97

Customize Your Item

Select Wrist Pins

- Select Wrist Pins -

* required

Add Ceramic Dome Coating

- Add Ceramic Dome Coating -

* required

Qty:

Free Shipping!

Description
Details
Shipping
Reviews

Description

Part Number	30422-R1
Application	Ford Modular 4.6L 4V
Bore	3.562"
Stroke	3.543"
Rod Length	5.933"
Compression Height	1.220"
Piston Volume	-11.5cc
Valve Reliefs	4V Valve Reliefs - Will fit +1mm Valves
Valve Relief Depths	.151" Intake / .050" Exhaust
Compression Ratio - 52cc	9.1:1 Compression using 3.620" x .036" Gasket
Ring Land Spacing	.280" x .180" x .080"
Included Wrist Pin	Trend G8662500180C
Wrist Pin Material	8620 Alloy
Wrist Pin Dimension	.866" x 2.500" x .180" Wall - 123g
Optional Wrist Pin Upgrade	Trend H8662500200C
Optional Wrist Pin Material	H-13 Tool Steel
Optional Wrist Pin Dimesions	.866" x 2.500" x .200" Wall - 132g
Ring Stack	1.2mm x 1.5mm x 3mm
Included Piston Ring Set	09403562
Included Piston Ring Details	Gas Nitrided Steel Top, Napier 2nd, 3 Piece Oil

The Diamond 4.6L Competition Series Pistons are designed for moderate to high horsepower forced induction applications and are a great choice for Street / Strip applications up to 1400 HP. These Pistons come with Trend .180" Wall 8620 Wrist Pins, Moly Skirt Coating and a Steel Top, Napier 2nd Ring set. We recommend upgrading to the H-13 Pins around the 900 HP mark. The 8260 Pins will not break, but they will begin to flex at some point and are not as rigid as the H-13 heavier wall pins. We recommend this for the simple fact that wrist pin flex will wear out both the Pin Bore and the Connecting Rod Bushing.

Optional Upgrades:

H-13 Tool Steel Pins
Ceramic Dome Coating
