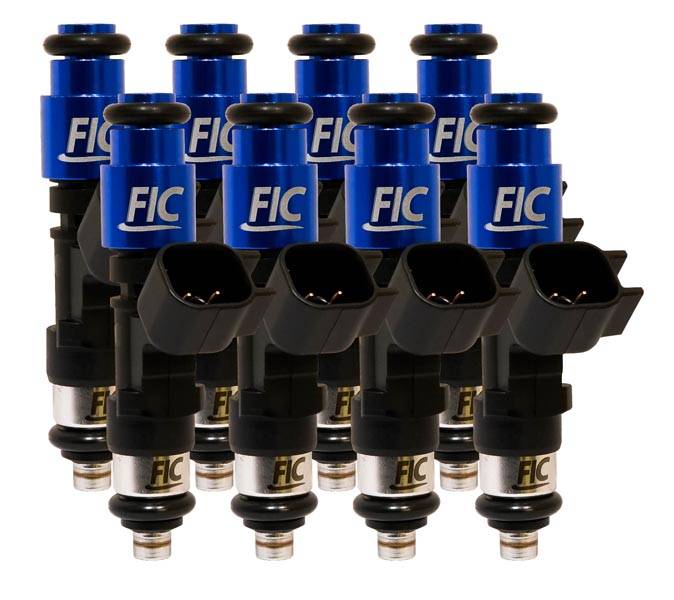

Fuel Injector Clinic IS402-0525H 525cc / 50lb Fuel Injectors for 87-04 Mustang GT and 93-98 Cobra
Description
FIC 525cc Fuel Injectors for 87 - 04 Ford Mustang GT and 93 - 98 Cobra. 50lbs / hr @ 43.5 Psi
-
FIC's Data Matched high performance fuel injectors featuring high impedance Bosch core, E85 compatible, with a lifetime warranty.
-
Fuel Injector Clinic's high performance fuel injector sets are precisely flow matched to within 1%. Each injector within each set is individually numbered and results for each injector are listed on a detailed flow sheet included with the set
-
Fuel Injector Clinic's high performance fuel injectors are flow tested and rated at 43.5psi (3Bar) at 90 degrees F fuel temperature using CF-16B calibration fluid.
-
Superior short pulse width control and tight manufacturing tolerances make these injectors easy to tune and provide great drivability.
-
Fuel Injector Clinic injectors are set up to and include all o-rings needed to fit the factory application for the listed vehicle. For aftermarket or other unusual setups please contact us prior to placing your order to make sure you receive injectors that fit properly.
-
Every injector is covered against failure caused by defects in original manufacture by FIC's lifetime warranty.

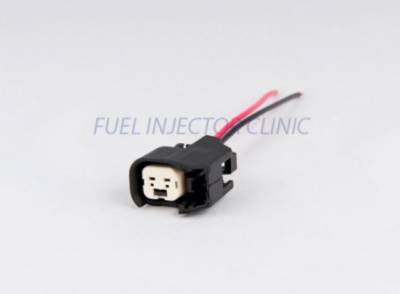

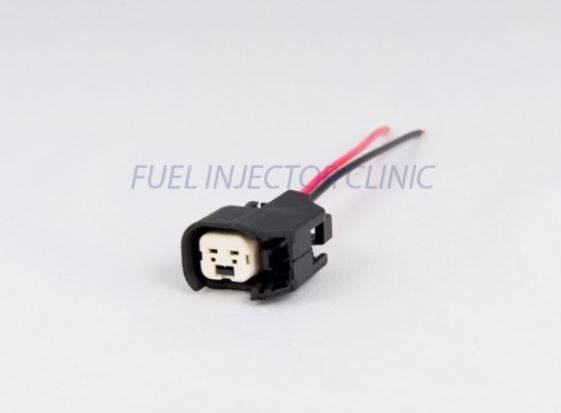

This set of injectors requires you to change the injector plug on the wiring harness in your car if your ECU and / or Wiring Harness is original. This set of injectors includes pigtails with the proper USCAR Injector plug that can simply be soldered into your existing wiring harness. If you prefer something plug and play, then select the PnP option on the drop down menu. The PnP option adapts the earlier Jetronic / Minitimer plug to the newer style USCAR Injector and requires no soldering.
See Specifications Tab for additional details
See Injector Data Tab for Data Sheet Download. Includes files for both SCT and HP Tuners
Specifications
Specifications
Part Number | IS402-0525H |
Quantity | Set of 8 |
Fitment | Ford 87-04 GT / 93-98 Cobra |
Injector Size | 525cc |
Flow Rating | 50lbs/hr @ 43.5 Psi |
Impedence | High-Z |
Plug Style | USCAR |
Horsepower Ratings
WHP on Gas N/A @ 43 Psi 90% Duty Cycle | 612 HP |
WHP on Gas Supercharged @ 43 Psi 90% Duty Cyle | 556 HP |
WHP on Gas Turbocharged @ 43 Psi 90% Duty Cyle | 510HP |
WHP on Gas N/A @ 58 Psi 90% Duty Cycle | 707 HP |
WHP on Gas Supercharged @ 58 Psi 90% Duty Cycle | 642 HP |
WHP on Gas Turbocharged @ 58 Psi 90% Duty Cycle | 589 HP |
WHP on E85 N/A @ 43 Psi 90% Duty Cycle | 470 HP |
WHP on E85 Supercharged @ 43 Psi 90% Duty Cycle | 428 HP |
WHP on E85 Turbocharged @ 43 Psi 90% Duty Cycle | 392 HP |
WHP on E85 N/A @ 58Psi 90% Duty Cycle | 544 HP |
WHP on E85 Supercharged @ 58 Psi 90% Duty Cycle | 494 HP |
WHP on E85 Turbocharged @ 58 Psi 90% Duty Cycle | 453 HP |
Data Sheet
Details
- FIC-IS402-0525H
- FIC-IS402-0525H
- Fuel Injector Clinic
- New
Categories
Shipping Information
- Item Requires Shipping
- 4.0 lbs.
- W6.0000” x H4.0000” x L12.0000”
- Free Shipping!
