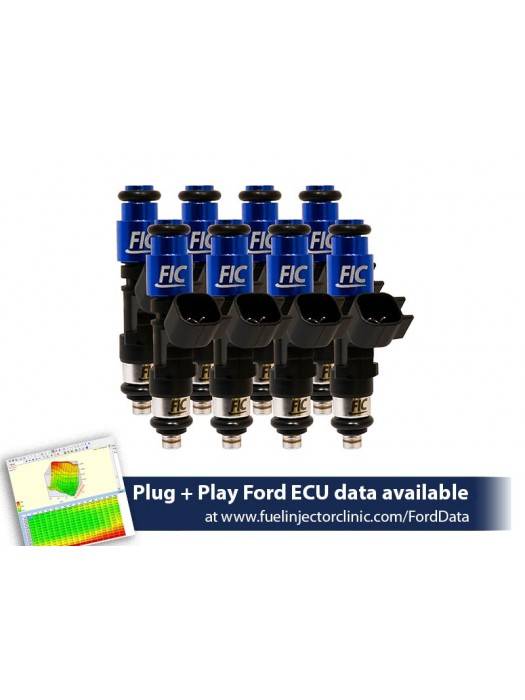

Fuel Injector Clinic IS402-1440H 1440cc / 140lb Fuel Injectors for 87-04 Mustang GT and 93-98 Cobra

FIC-IS402-1440H
Flows 140lbs / hr @ 43.5 Psi - Includes Pigtails
Pricing: $1,470.00
Qty:
Free Shipping!

Description

FIC 1440cc Fuel Injectors for 87 - 04 Ford Mustang GT and 93 - 98 Cobra. 140lbs / hr @ 43.5 Psi

  • FIC's Data Matched high performance fuel injectors featuring high impedance Bosch core, E85 compatible, with a lifetime warranty.

  • Fuel Injector Clinic's high performance fuel injector sets are precisely flow matched to within 1%. Each injector within each set is individually numbered and results for each injector are listed on a detailed flow sheet included with the set

  • Fuel Injector Clinic's high performance fuel injectors are flow tested and rated at 43.5psi (3Bar) at 90 degrees F fuel temperature using CF-16B calibration fluid.

  • Superior short pulse width control and tight manufacturing tolerances make these injectors easy to tune and provide great drivability.

  • Fuel Injector Clinic injectors are set up to and include all o-rings needed to fit the factory application for the listed vehicle. For aftermarket or other unusual setups please contact us prior to placing your order to make sure you receive injectors that fit properly.

  • Every injector is covered against failure caused by defects in original manufacture by FIC's lifetime warranty.

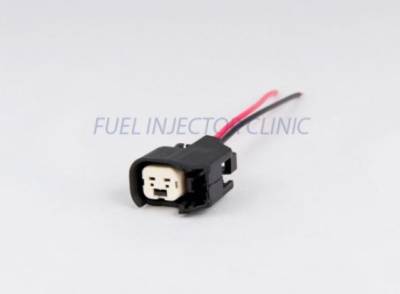

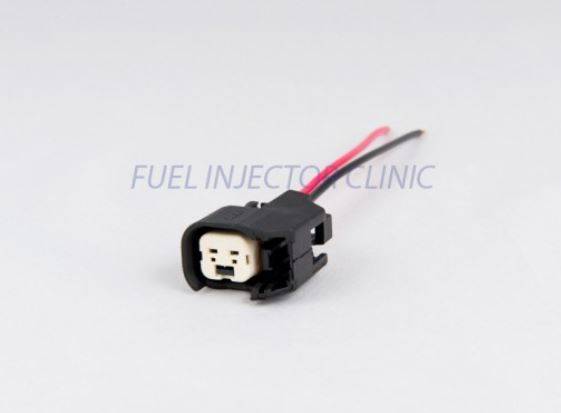

    This set of injectors requires you to change the injector plug on the wiring harness in your car if your ECU and / or Wiring Harness is original. This set of injectors includes pigtails with the proper USCAR Injector plug that can simply be soldered into your existing wiring harness. If you prefer something plug and play, then select the PnP option on the drop down menu. The PnP option adapts the earlier Jetronic / Minitimer plug to the newer style USCAR Injector and requires no soldering.

    See Specifications Tab for additional details

    See Injector Data Tab for Data Sheet Download. Includes files for both SCT and HP Tuners

Specifications

Specifications

Part Number   IS402-1440H
Quantity   Set of 8
Fitment   Ford 87-04 GT / 93-98 Cobra
Injector Size   1440cc
Flow Rating   140lbs/hr @ 43.5 Psi
Impedence   High-Z
Plug Style   USCAR

 Horsepower Ratings

WHP on Gas N/A @ 43 Psi 90% Duty Cycle  1678 HP
WHP on Gas Supercharged @ 43 Psi 90% Duty Cyle  1526 HP
WHP on Gas Turbocharged @ 43 Psi 90% Duty Cyle 1399 HP

WHP on Gas N/A @ 58 Psi 90% Duty Cycle  1938 HP
WHP on Gas Supercharged @ 58 Psi 90% Duty Cycle  1762 HP
WHP on Gas Turbocharged @ 58 Psi 90% Duty Cycle  1615 HP

WHP on E85 N/A @ 43 Psi 90% Duty Cycle  1291 HP
WHP on E85 Supercharged @ 43 Psi 90% Duty Cycle  1174 HP
WHP on E85 Turbocharged @ 43 Psi 90% Duty Cycle  1076 HP

WHP on E85 N/A @ 58Psi 90% Duty Cycle  1491 HP
WHP on E85 Supercharged @ 58 Psi 90% Duty Cycle  1355 HP
WHP on E85 Turbocharged @ 58 Psi 90% Duty Cycle  1242 HP



Details

Categories

Shipping Information

  • Item Requires Shipping
  • 4.0 lbs.
  • W6.0000” x H4.0000” x L12.0000”
