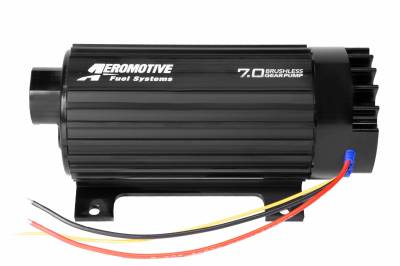

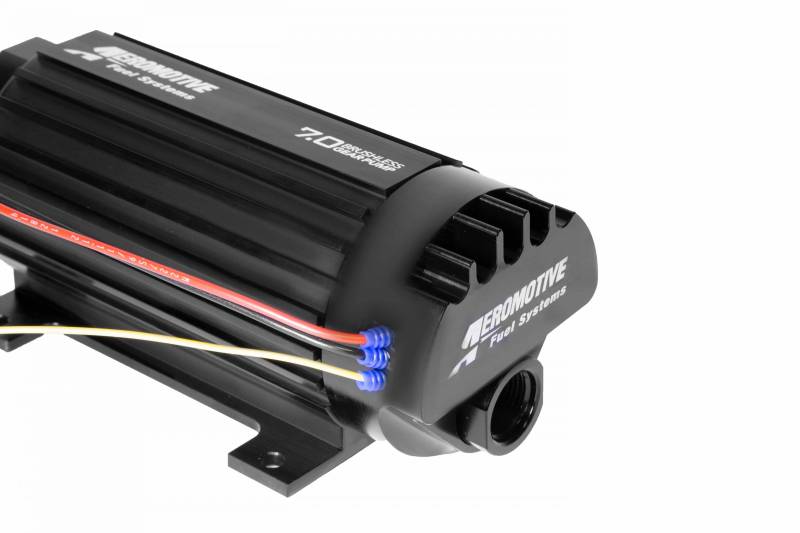

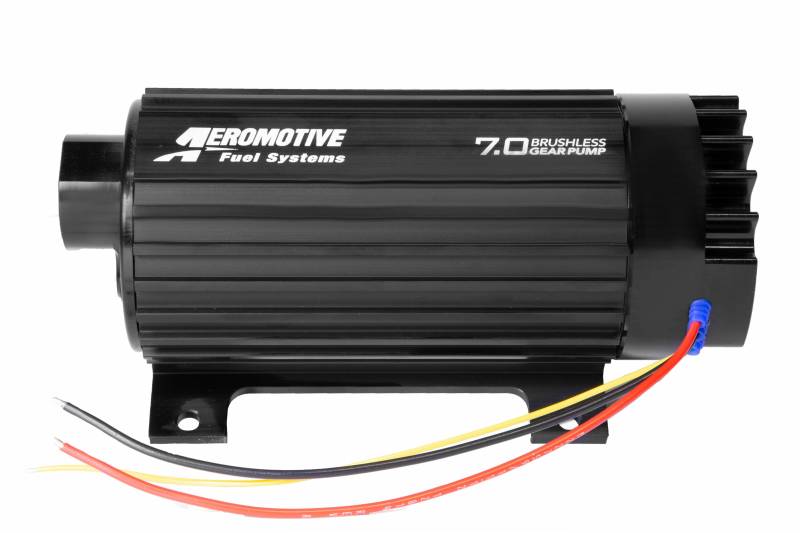

Aeromotive 7.0 GPM Brushless Spur Gear External Fuel Pump w/ Variable Speed Control

Aeromotive 7.0 GPM Brushless Spur Gear External Fuel Pump w/ Variable Speed Control

• Brushless design for longer life
• E85 compatible (reduces HP limit by 30%)
• Capable of supporting 1000s of HP
• ORB -12 inlet and ORB -10 outlet
• Up to 100 PSI peak pressure, base plus boost
• Requires straight 12-VDC to 16-VDC power supply
• Not compatible with speed controllers

Fuel Injected Engines:
– up to 4,800 FWHP on GAS – naturally aspirated
– up to 3,400 FWHP on GAS – forced air induction

– up to 3,360 FWHP on E85 – naturally aspirated
– up to 2,380 FWHP on E85 – forced air induction

– up to 1,680 FWHP on METHANOL – naturally aspirated
– up to 1,190 FWHP on METHANOL – forced air induction

Carbureted Engines:
– up to 5,400 FWHP on GAS – naturally aspirated
– up to 3,800 FWHP on GAS – forced air induction

– up to 3,780 FWHP on E85 – naturally aspirated
– up to 2,400 FWHP on E85 – forced air induction

– up to 1,890 FWHP on METHANOL – naturally aspirated
– up to 1,200 FWHP on METHANOL – forced air induction
