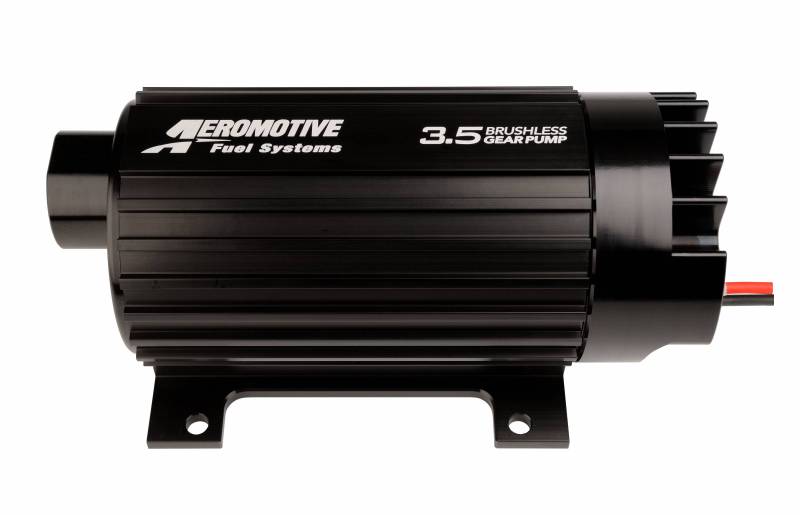

Aeromotive 3.5 GPM Brushless Spur Gear External Fuel Pump w/ Variable Speed Control

Aeromotive 3.5 GPM Brushless Spur Gear External Fuel Pump w/ Variable Speed Control

• Brushless design for longer life
• E85 compatible (reduces HP limit by 30%)
• Capable of supporting 1000s of HP
• ORB -12 inlet and ORB -10 outlet
• Up to 150 PSI peak pressure, base plus boost
• Requires straight 12-VDC to 16-VDC power supply
• Not compatible with speed controllers

Fuel Injected Engines:
– up to 2,400 FWHP on GAS – naturally aspirated
– up to 1,800 FWHP on GAS – forced air induction

– up to 1,680 FWHP on E85 – naturally aspirated
– up to 1,260 FWHP on E85 – forced air induction

– up to 840 FWHP on METHANOL – naturally aspirated
– up to 630 FWHP on METHANOL – forced air induction

Carbureted Engines:
– up to 2,600 FWHP on GAS – naturally aspirated
– up to 2,000 FWHP on GAS – forced air induction

– up to 1,820 FWHP on E85 – naturally aspirated
– up to 1,400 FWHP on E85 – forced air induction

– up to 910 FWHP on METHANOL – naturally aspirated
– up to 700 FWHP on METHANOL – forced air induction
