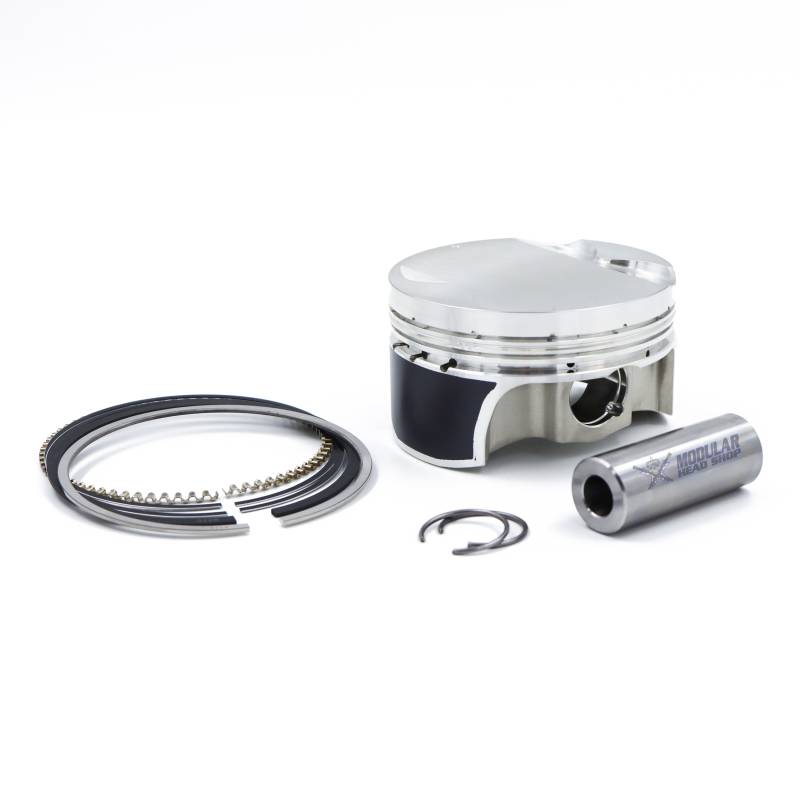

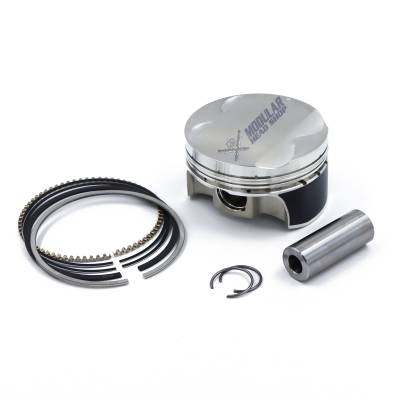

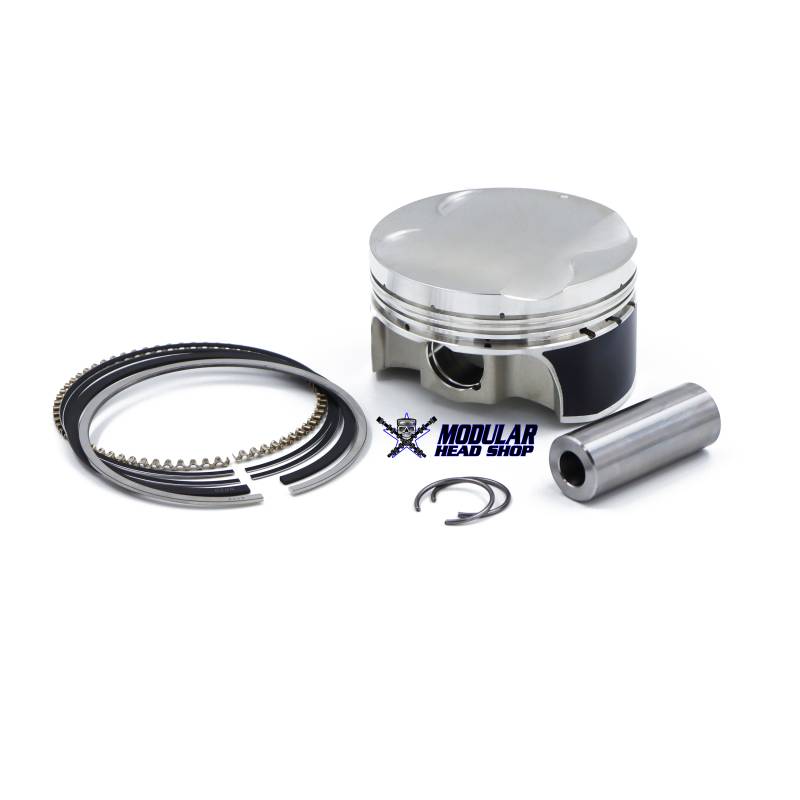

MHS / Wiseco 4.6L 4V Street / Strip Piston and Ring Kit -3cc Flat Top, 3.572" Bore

(0) Reviews: Write first review

SKU: MHS-304642

Includes Lateral Gas Porting, Moly Skirt Coating, .200" Wall Tool Steel Pins, & Wiseco GNX Ring Set

Was: $1,349.00

Sale: $1,214.10

Save: 10%

Save: $134.90

Description
Details
Shipping
Reviews

Description

Compression Ratio: 10.3:1 with 52cc Heads

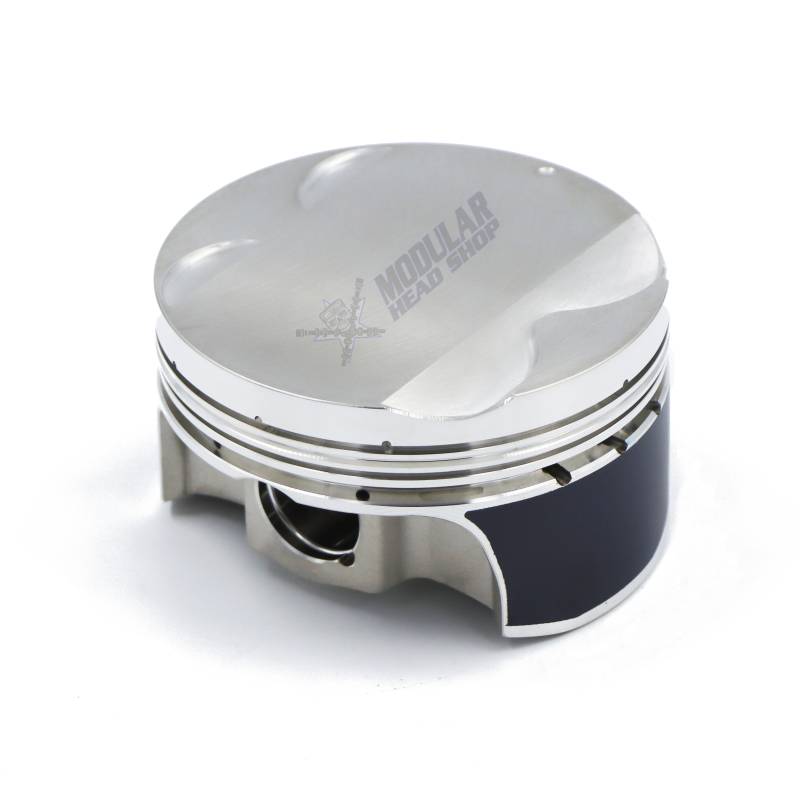

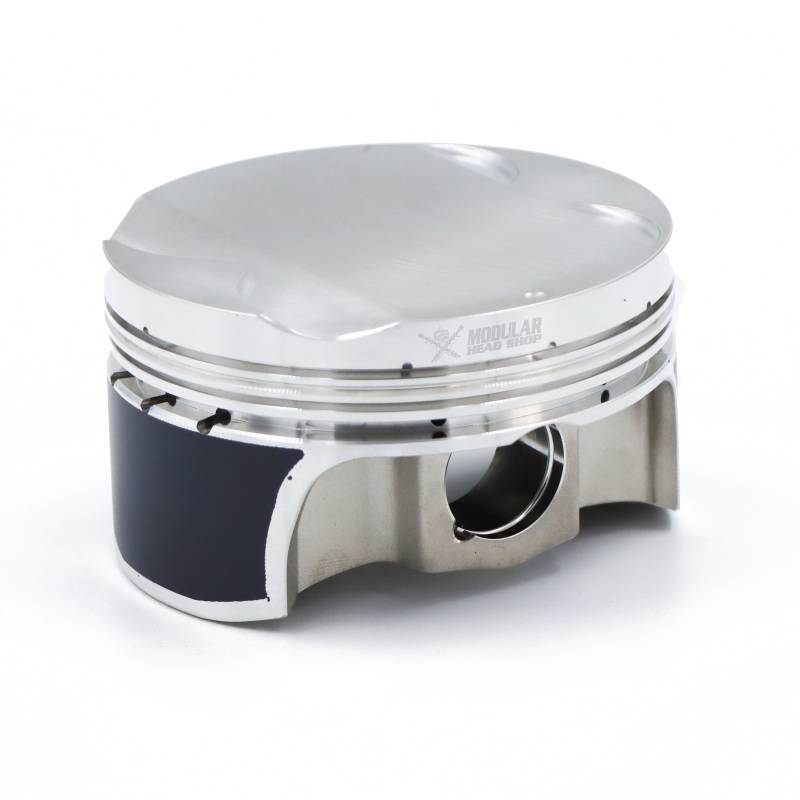

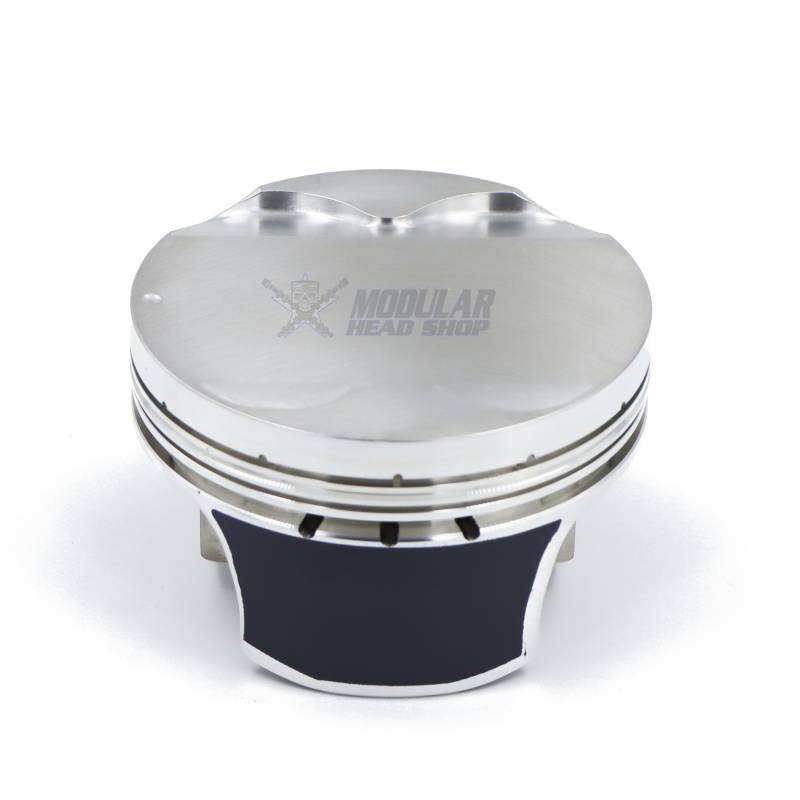

This Piston Kit is based off the tried and true Wiseco K0079X2 Piston that we have had extreme amounts of succeess with. We change from a -6cc dish to a -3cc flat top for a tad more compression, add lateral gas ports for better top ring seal and upgrade the wrist pins to a .200" Wall Tool Steel for extra rigidity. This kit is an excellent choice for any 4.6L 4V combo making 600 - 1300 WHP. Don't let the lightweight strutted forging fool you, these pistons are extremely strong in design and this exact part number has been as fast as 4.5X @ 155+ to the 1/8th mile.

3.572" Bore - .020" Over
-3cc Flat Top / 10.3:1 Compression
In-Board / Strutted 2618 Alloy Forging
.300" Down Top Ring
Lateral Gas Porting for better Top Ring Seal
Moly Skirt Coating
Dual Forced Pin Oilers
2.250" x .200" Wall Tool Steel Wrist Pins
Wiseco GNX Ring Set - Steel Top, Napier 2nd

Part Number	MHS-304642
Application	Ford 4.6L 4V
Bore	3.572"
Stroke	3.543"
Rod Length	5.933"
Compression Height	1.220"
Piston Volume	-3.0cc
Piston Skirt Design	Strutted Forging
Piston Material	2618 Aluminum Alloy
Piston Average Weight	381g
Compression Ratio	10.3:1 w/ 52cc Heads (Factory) / 10:1 with MHS 54cc Chambers
Included Wrist Pin	Wiseco S796
Wrist Pin Material	52100 Tool Steel
Wrist Pin Dimension	.866" x 2.250" x .200" Wall - 121.5g
Lock Style	Round Wire
Replacement Lock PN	W5590
Ring Stack	1.5mm x 1.5mm x 3.0mm
Included Piston Ring Set	Wiseco 3572GNX
Piston Ring Details	Gas Nitrided Steel Top, Cast Iron Napier 2nd, 3-Piece Oil
Piston Assembly Reciprocating Weight	533g - Pistons, Pins, Clips, and Rings
