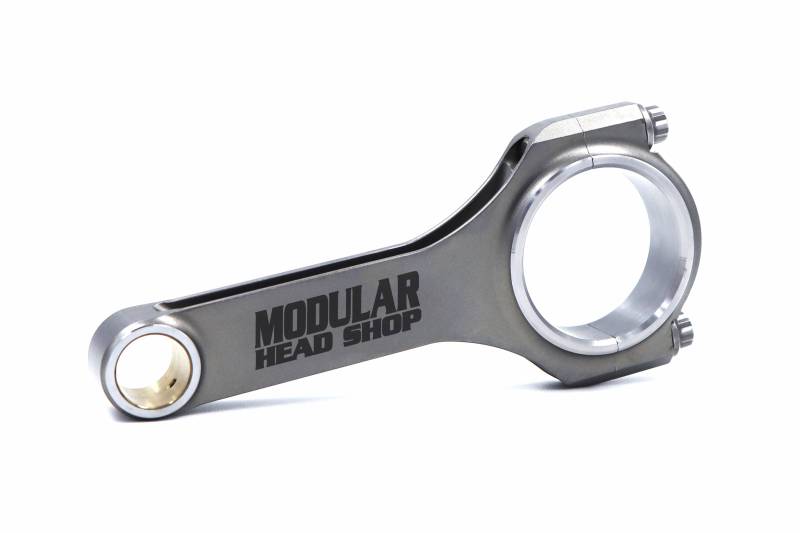

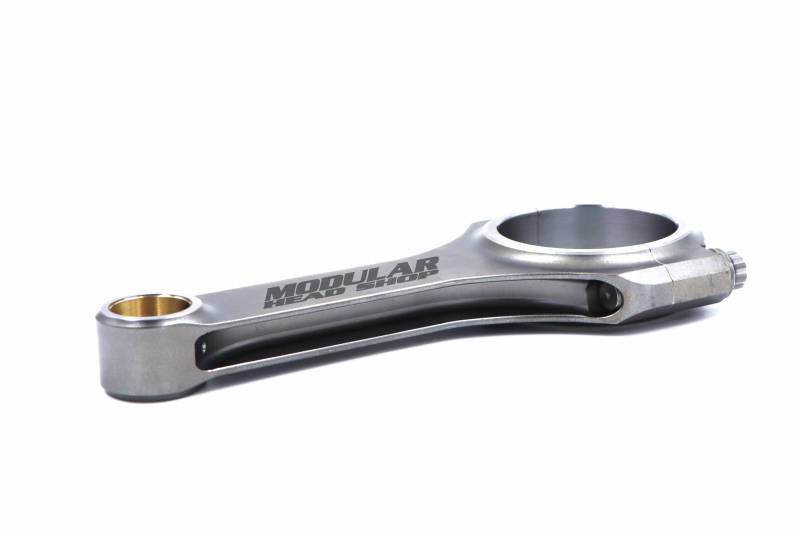

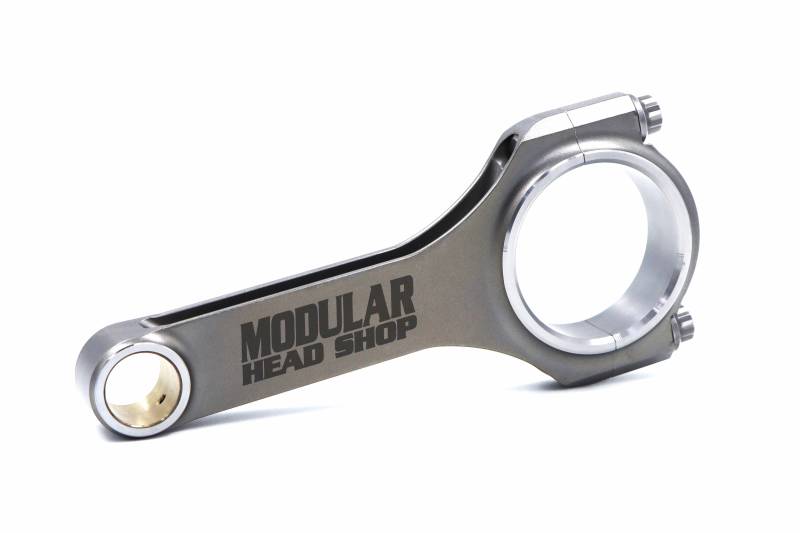

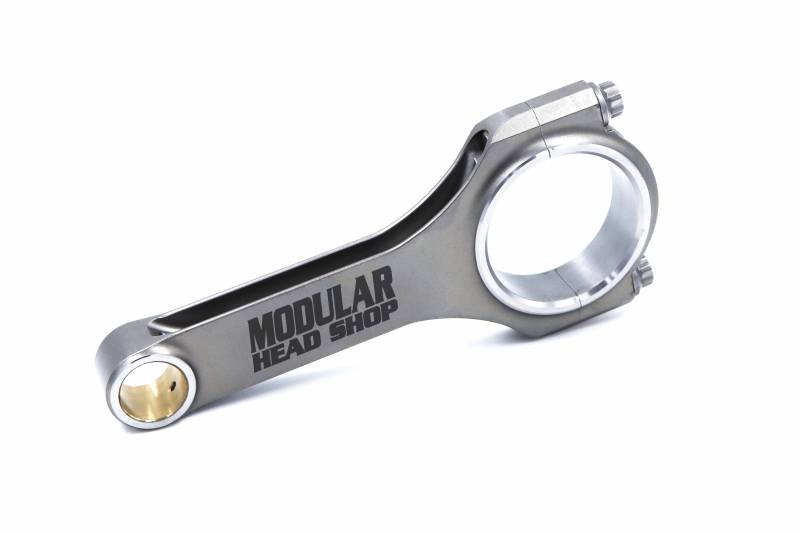

MHS / Dyers 300M H-Beam Connecting Rods for 4.6L / 5.0L Engines

MHS-155933
100% USA Made, 5.933" Length, 300M Forging, 7/16" ARP 2000 Bolts - Designed for 2000+ HP & 9500+ RPM
Was: $2,699.00
Sale: $2,429.10
Save: 10%
Save: $269.90
Qty:
Free Shipping!

Description



Modular Head Shop Competition 300M H-Beam Connecting Rods for Ford 4.6L / 5.0L Coyote applications. You will not find a finer steel connecting rod for this platform. These rods are 100% made in the USA from the forging, to machining, heat treating and finishing. With so many rods on the market for this platform being overly heavy for their strength, we decided to team up with the best and bring a super strong, yet lightweight connecting rod to the market. Dyers Top Rods is one of the leading manufacturers of 300M Steel Connecting Rods throughout the racing market and their quality is proven.

The 300M (4340M) Vacuum melted aerospace provides superior strength over the standard 4340 material and the entire connecting rod design puts the material where it needs it the most without adding a bunch of additional weight. These connecting rods were designed to be the best possible option available for competition use.

  • Designed for 2000+ HP , 9500+ RPM !!
  • 100% Forged, Machined, and Heat Treated in the USA
  • Big End and Pin End Bores finished to extremely tight tolerances
  • Excellent option for both Drag Racing and Endurance applications
Part Number  MHS-155933
Application  Ford 4.6L / 5.0L Coyote
Material   300M Alloy
Length    5.933"
Big End Bore    2.2396"
Wrist Pin Bore  .8670"
Big End Width   .938"
Pin End Width   .940"
Rod Bolts  7/16" ARP 2000
Big End Weight   454g
Pin End Weight   171g
Total Weight   625g





Details

Categories

Shipping Information

  • Item Requires Shipping
  • 15.0 lbs.
  • W8.0000” x H6.0000” x L12.0000”
  • Free Shipping!
