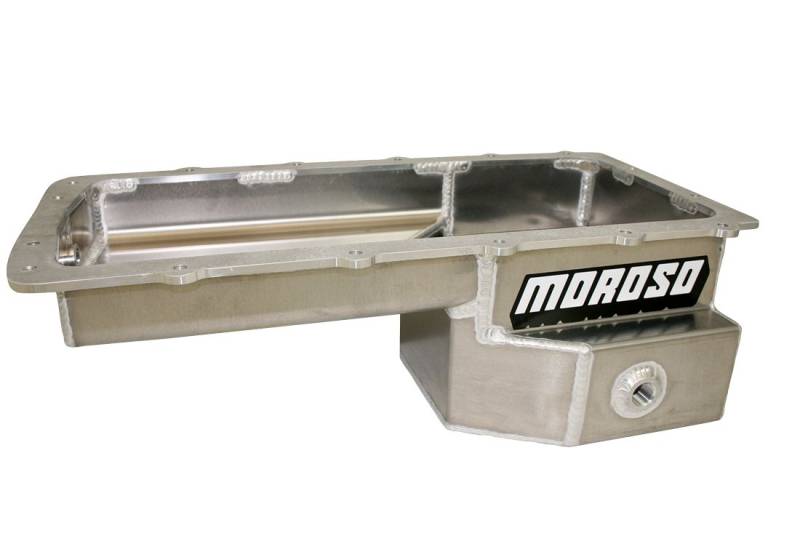

Moroso Ford 5.0L Coyote Aluminum Oil Pan, Drag Race Baffled, Rear T-Sump

Steel, Wet Sump, 6-5/8" Deep

Engine Application: Ford 5.0 Modular "Coyote" Engines
Fits: Mustang '11-Up & other Ford Rear Sump conversions with Ford "Coyote" or "Voodoo" Engines, (check measurements)

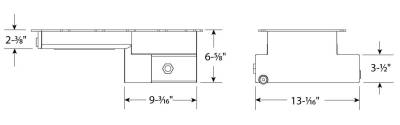

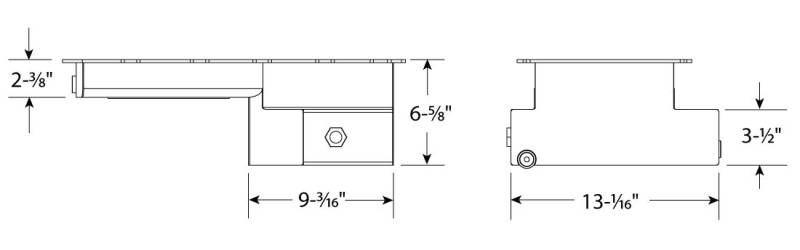

• Pan has a thick steel or billet aluminum rail with a 2-3/8" deep front section and a 6-5/8" deep by 9" long rear sump

• Designed to be used with Moroso Part No. 22936 or 5.0 "Coyote"/5.2 "Voodoo" Gen 1 or 2 factory windage tray and dipstick

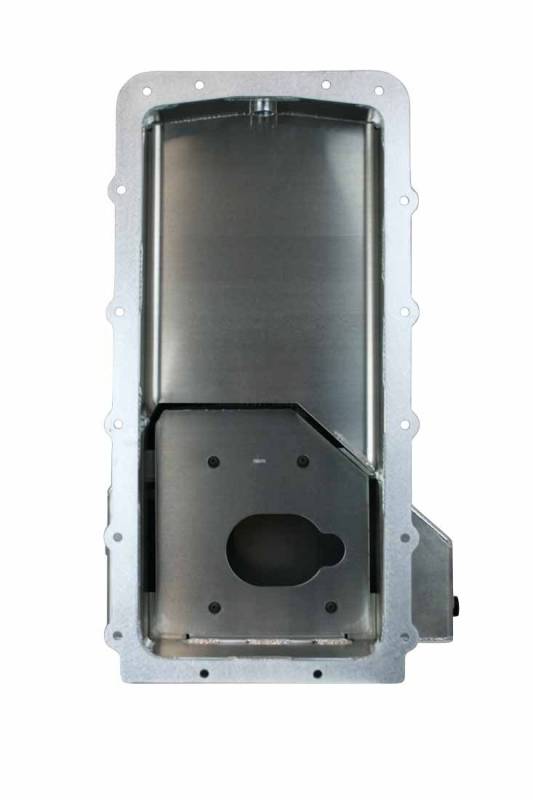

• Features a race-proven, four trap door assembly and anti-slosh baffle that keeps oil contained in oil pump pickup area during road racing and drag racing

• 1/2" NPT fitting for supercharger drain back

• 1/2" NPT fitting for oil temperature sender

• 20mm fitting for the factory oil level sensor*

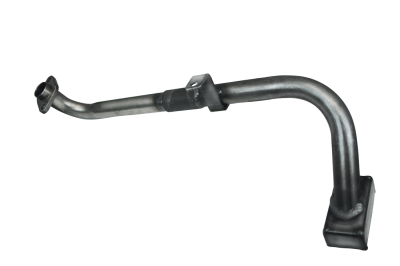

• On Gen 1 & 2 Coyote//Voodoo engines use factory oil pump pickup and on Gen 3 "Coyote/Voodoo" engines use Part No. 24578

*If the factory low oil warning sensor is not going to be used, Part 22738, 20mm Plug with copper washer is available.
