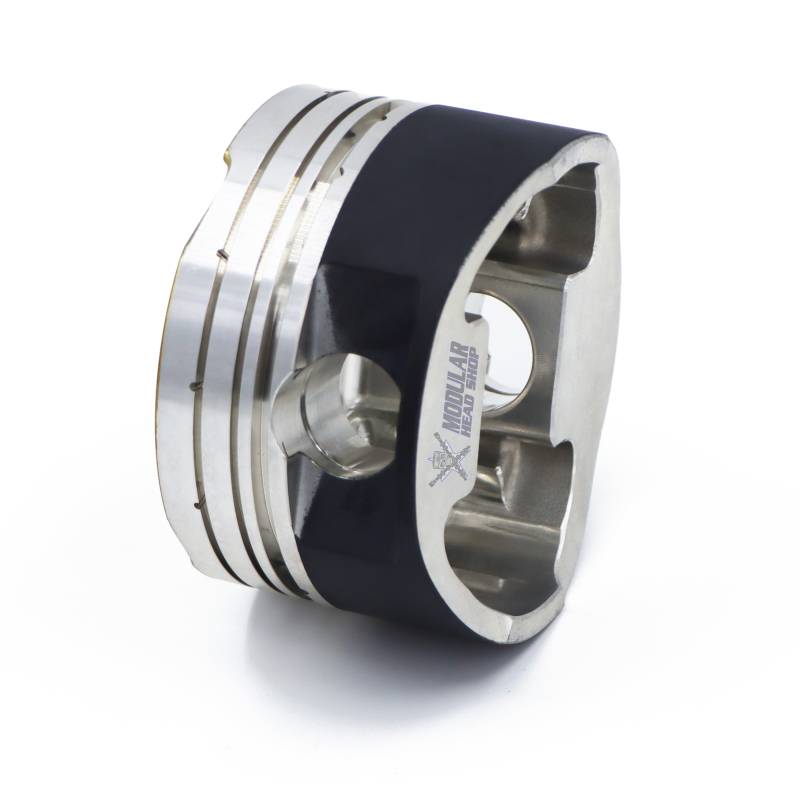

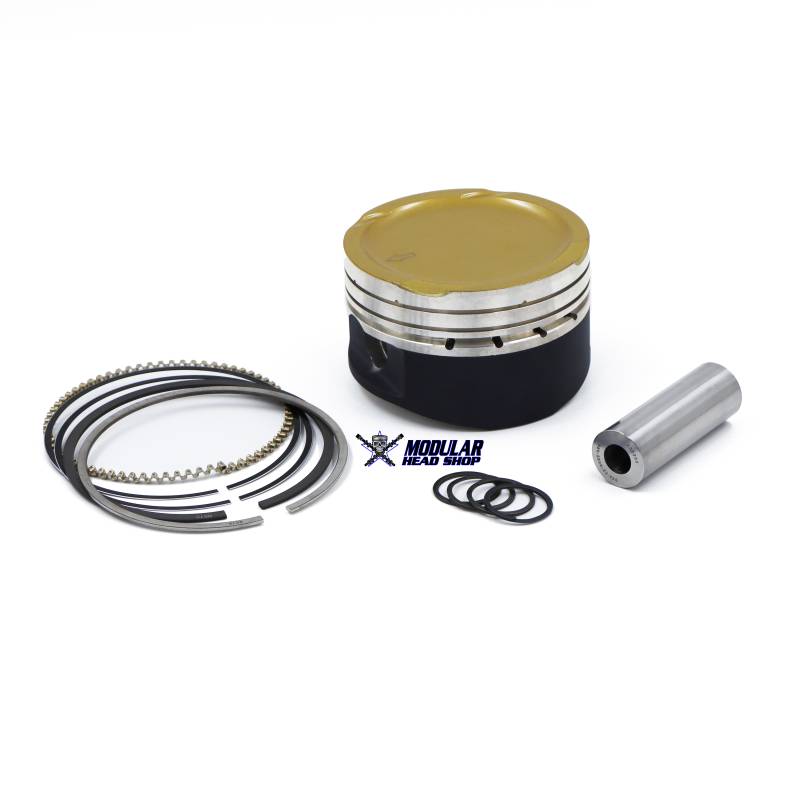

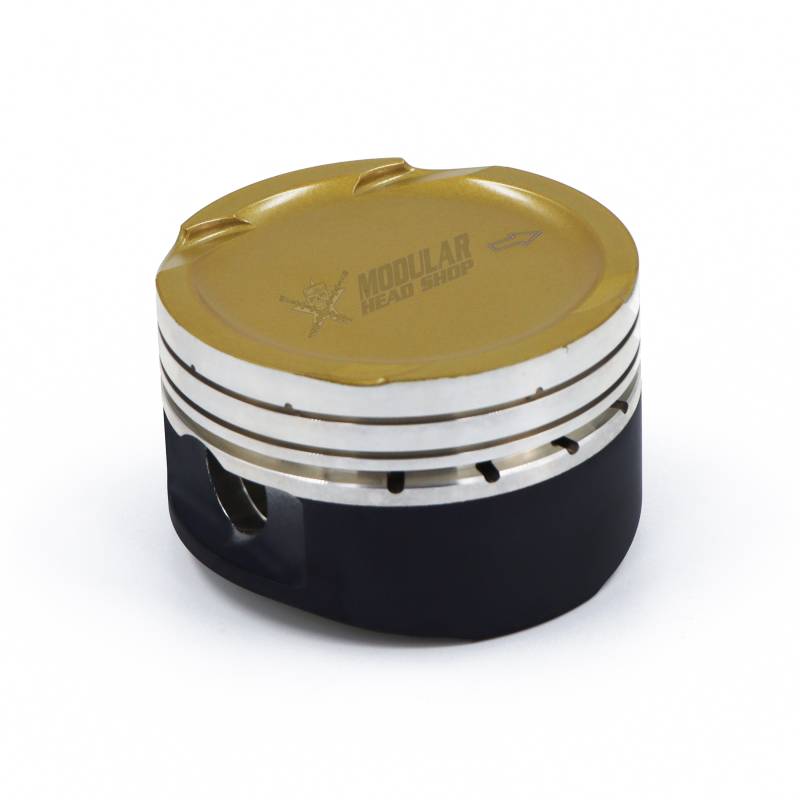

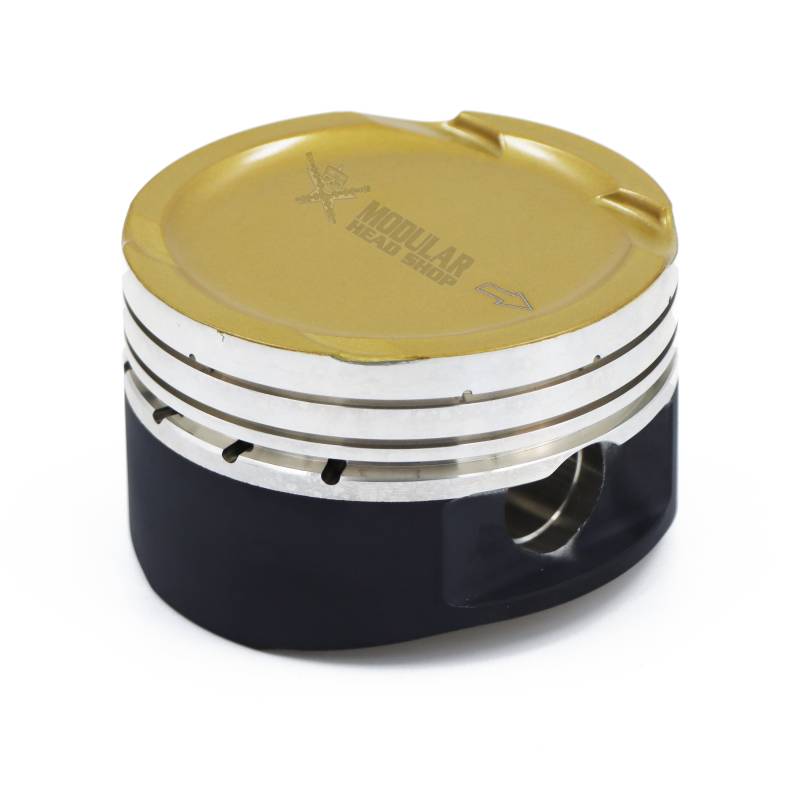

MHS / Wiseco 5.8L GT500 Competition Piston and Ring Kit -13cc Dish, 3.650" Bore

This custom MHS /Wiseco Piston and Ring Kit is designed for competition use and capable of relabiably holding 2500+ HP and 45+ lbs of boost. These Pistons have many subtle upgrades and details that make them just plain work!

Why 3.650" Bore? Its a good bore to start with. You get all the airflow benefits of a larger bore (approx .100" larger than the stock 5.4L) but with plenty of material left for future rebuilds.

Why 10.5:1 Compression? It's a good compression ratio for high boost pressures. There is no need to go any higher, just to have to pull more timing. We have had extremely good success in the 10.0:1 - 10.5:1 Compression range on both Ethanol based fuels and Methanol.

• 3.650" Bore
• -13cc Dish / 10.5:1 Compression
• Full Round 2618 Competition Forging
• .300" Down Top Ring with Max Ring Land Spacing
• Lateral Gas Porting for better Top Ring Seal

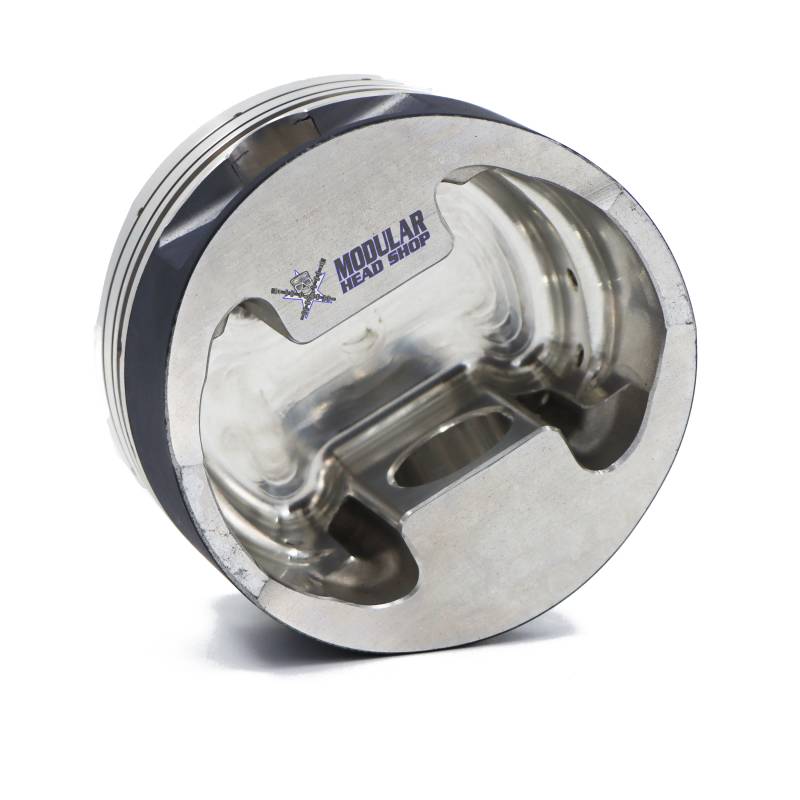

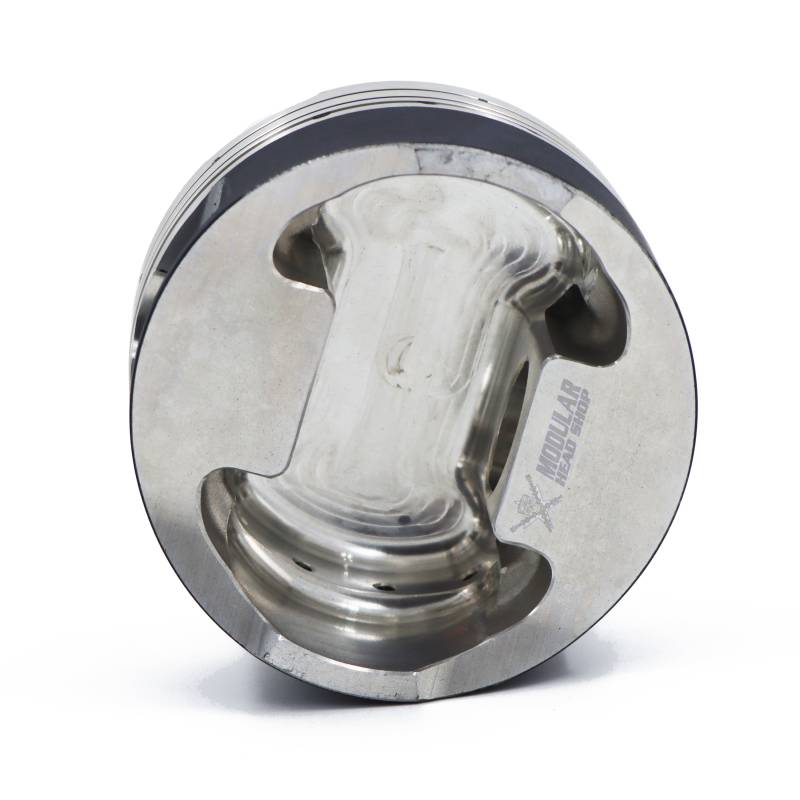

• Internal Skirt and Undercrown Mill for Lightening
• 3D Ball Milled / Softened Valve Pockets for Big Boost
• Ceramic Dome Thermal Barrier Coating
• Spray on Moly Skirt Coating
• Double Broached Pin Oilers
• 2.500" x .230" Wall Tool Steel Wrist Pins
• Double Spiral Locks
• Wiseco GNX Rings - Nitrided Steel Top, Napier 2nd
