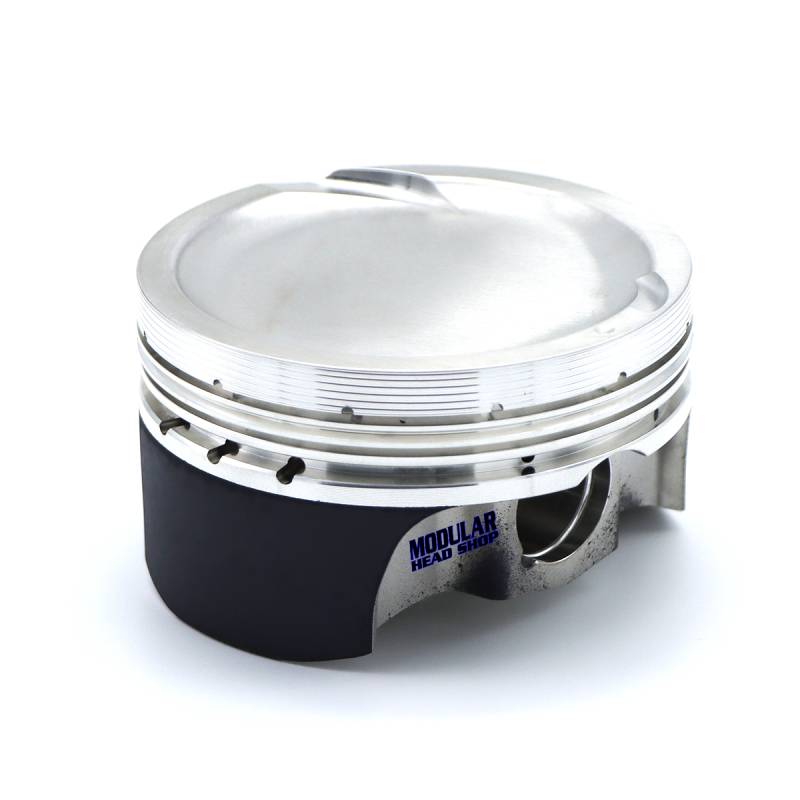

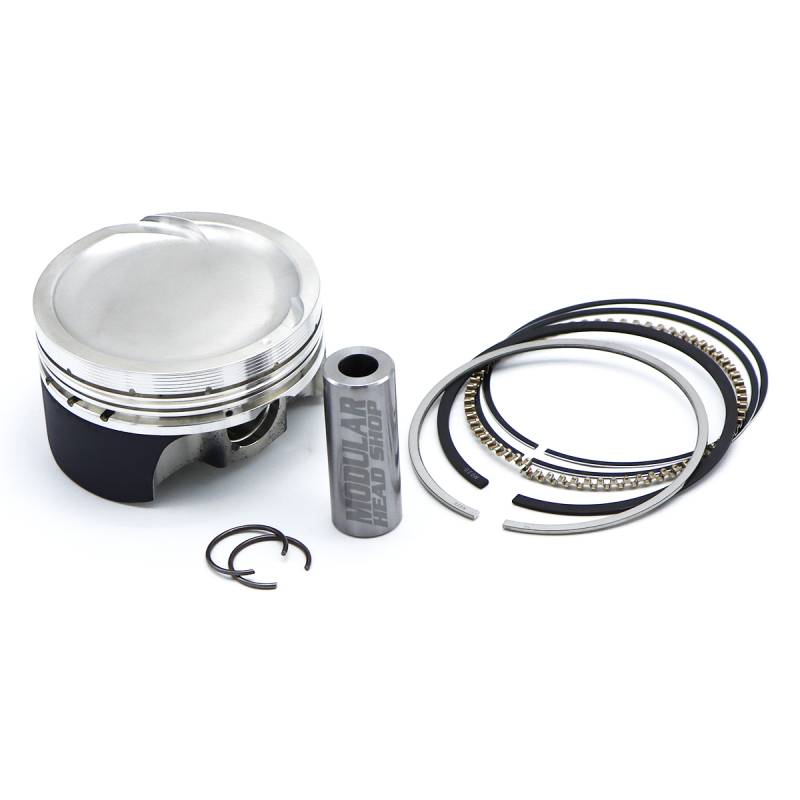

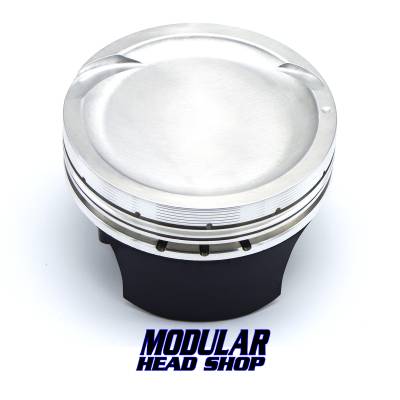

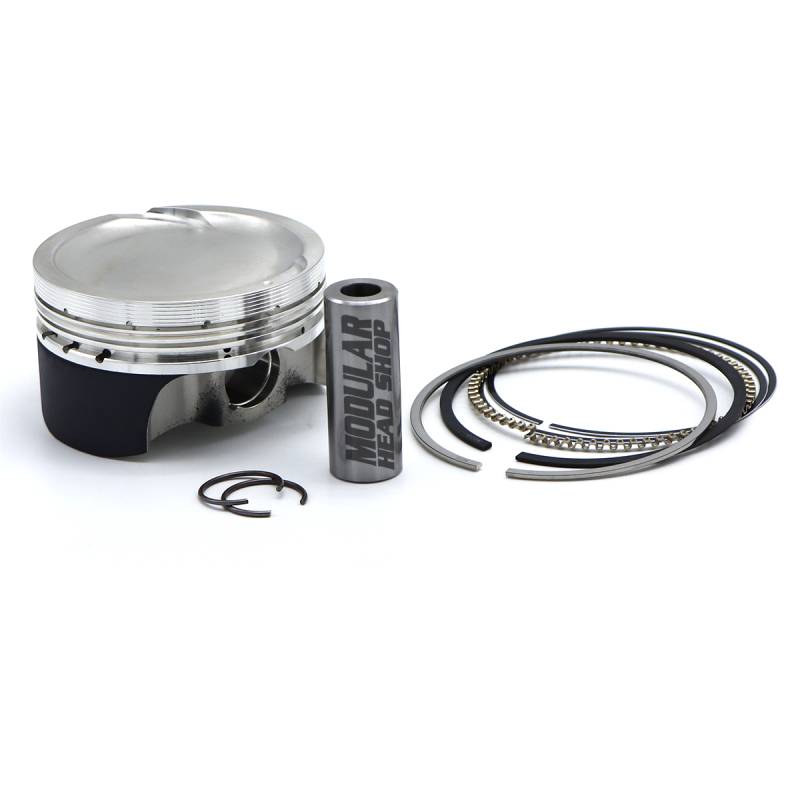

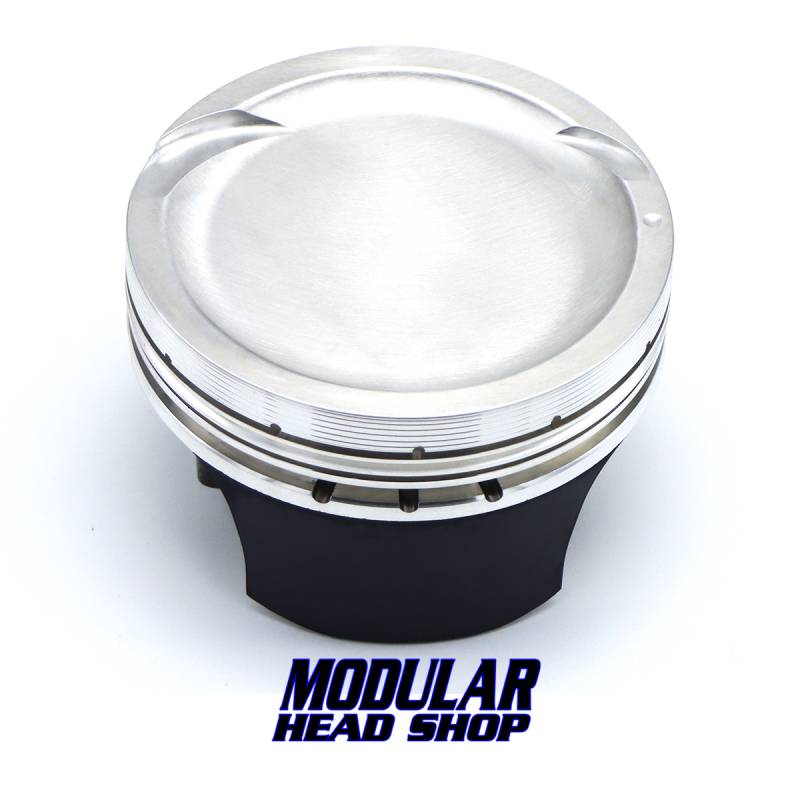

MHS / Wiseco 4.6L 2V PI Street / Strip Piston and Ring Kit -16cc, 3.572" Bore
MHS-304626
Includes Lateral Gas Porting, Moly Skirt Coating, .200" Wall Tool Steel Pins, & Wiseco GNX Ring Set
Pricing:
$1,349.00
Description
Compression Ratio: 9.7:1 with 42cc Heads
- 3.572" Bore - .020" Over
- -16cc Flat Top / 9.7:1 Compression
- In-Board / Strutted 2618 Alloy Forging
- .300" Down Top Ring
- Lateral Gas Porting for better Top Ring Seal
- Moly Skirt Coating
- Dual Forced Pin Oilers
- 2.250" x .200" Wall Tool Steel Wrist Pins
- Wiseco GNX Ring Set - Steel Top, Napier 2nd
| Part Number | MHS-304626 |
| Application | Ford 4.6L 2V PI |
| Bore | 3.572" |
| Stroke | 3.543" |
| Rod Length | 5.933" |
| Compression Height | 1.220" |
| Piston Volume | -16.0cc |
| Piston Skirt Design | Strutted Forging |
| Piston Material | 2618 Aluminum Alloy |
| Piston Average Weight | 360g |
| Compression Ratio | 9.7:1 w/ 42cc Heads (Factory) |
| Included Wrist Pin | Wiseco S796 |
| Wrist Pin Material | 52100 Tool Steel |
| Wrist Pin Dimension | .866" x 2.250" x .200" Wall - 121.5g |
| Lock Style | Round Wire |
| Replacement Lock PN | W5590 |
| Ring Stack | 1.5mm x 1.5mm x 3.0mm |
| Included Piston Ring Set | Wiseco 3572GNX |
| Piston Ring Details | Gas Nitrided Steel Top, Cast Iron Napier 2nd, 3-Piece Oil |
| Piston Assembly Reciprocating Weight | 512g - Pistons, Pins, Clips, and Rings |
