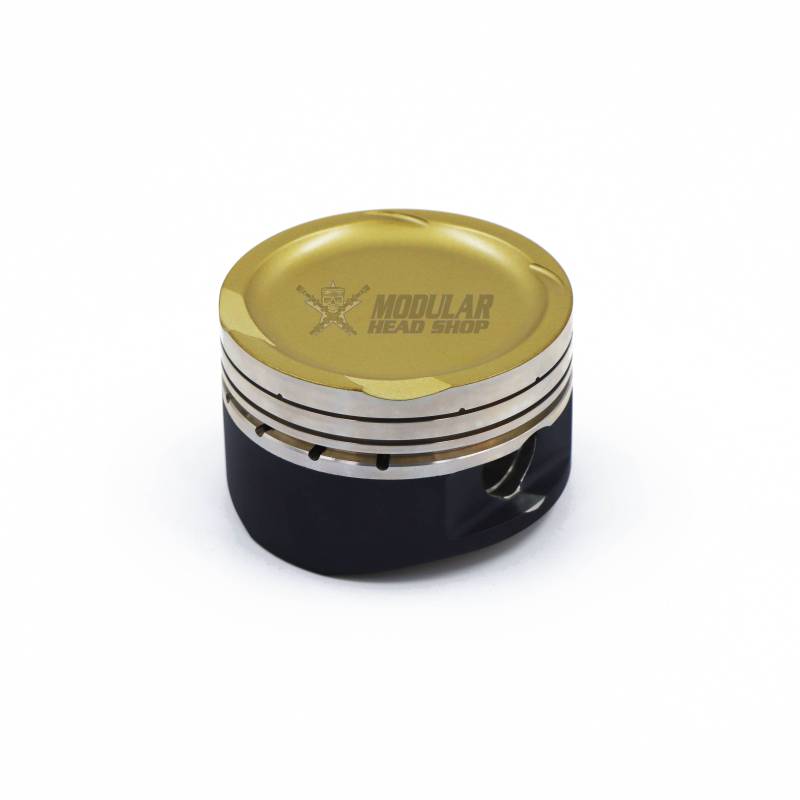

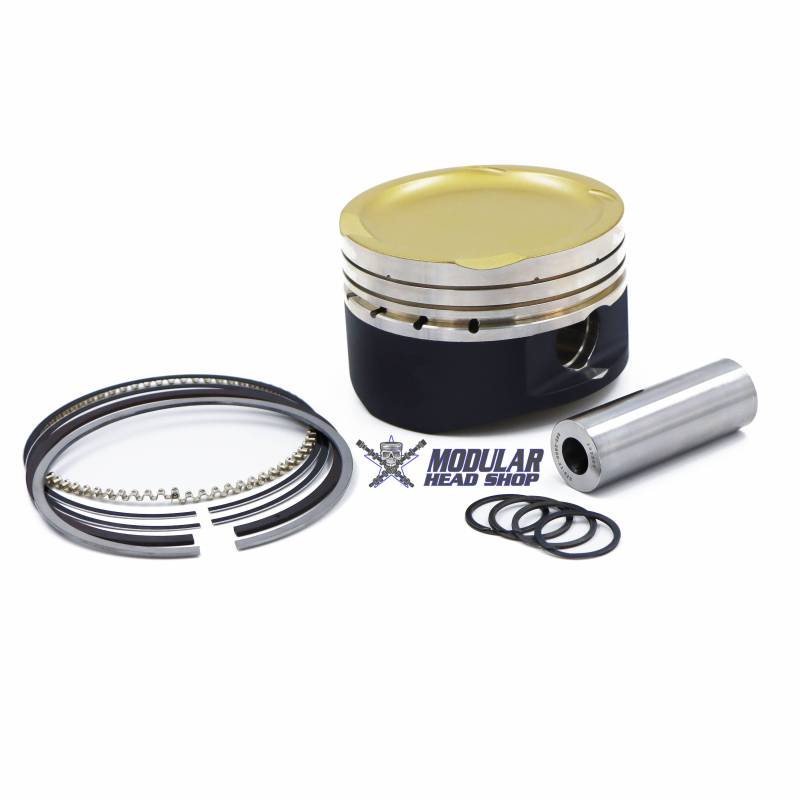

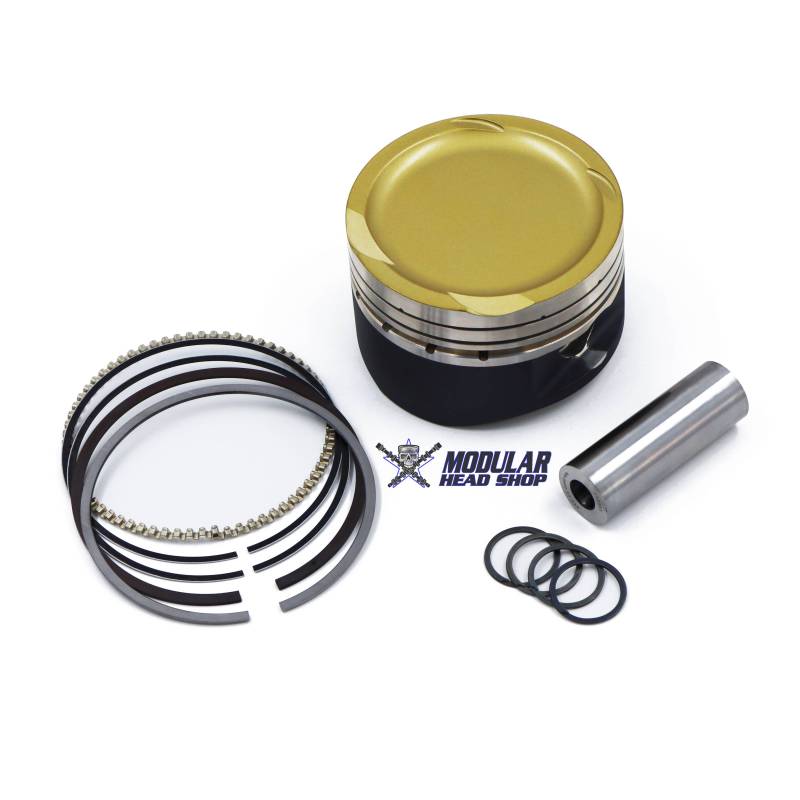

MHS / Wiseco 5.4L 4V GT500 Competition Piston and Ring Kit -16cc Dish, 3.552" Bore, 10.0:1 CR

(0) Reviews: Write first review
MHS-305440
Includes Lateral Gas Ports, Ceramic Dome and Moly Skirt Coating, .230" Tool Steel Wrist Pins, Custom Total Seal AP Steel, Napier 2nd Ring Set
Pricing: $1,799.00
Qty:
Free Shipping!

Description



Compression Ratio: 52cc = 10.0:1

  • 3.552" Bore
  • -16cc Dish / 10.0:1 Compression
  • Full Round 2618 Competition Forging
  • .300" Down Top Ring with Max Ring Land Spacing
  • Lateral Gas Porting for better Top Ring Seal
  • Ceramic Dome Thermal Barrier Coating
  • Spray on Moly Skirt Coating

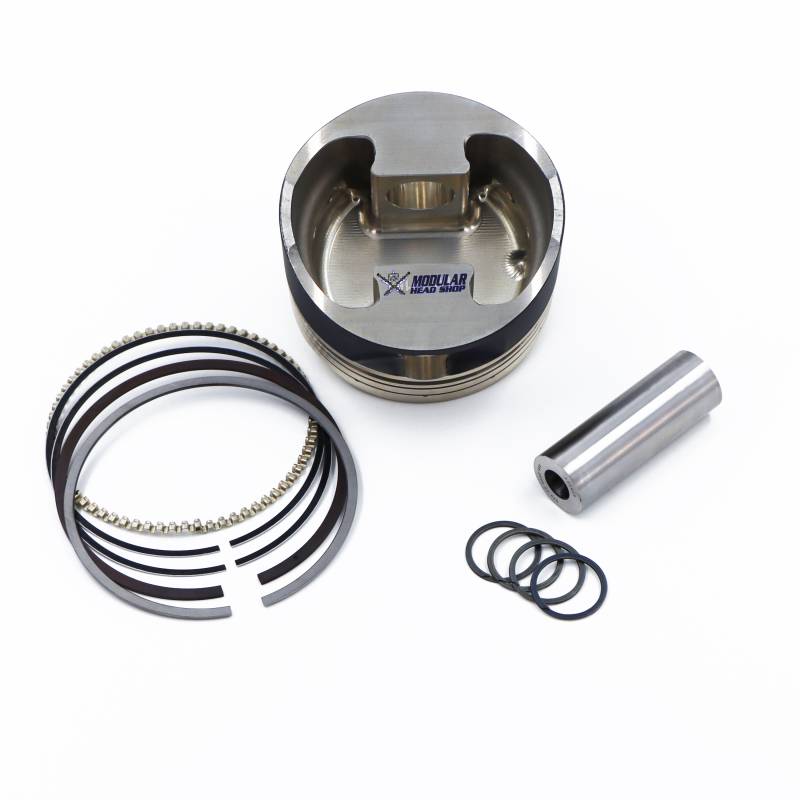

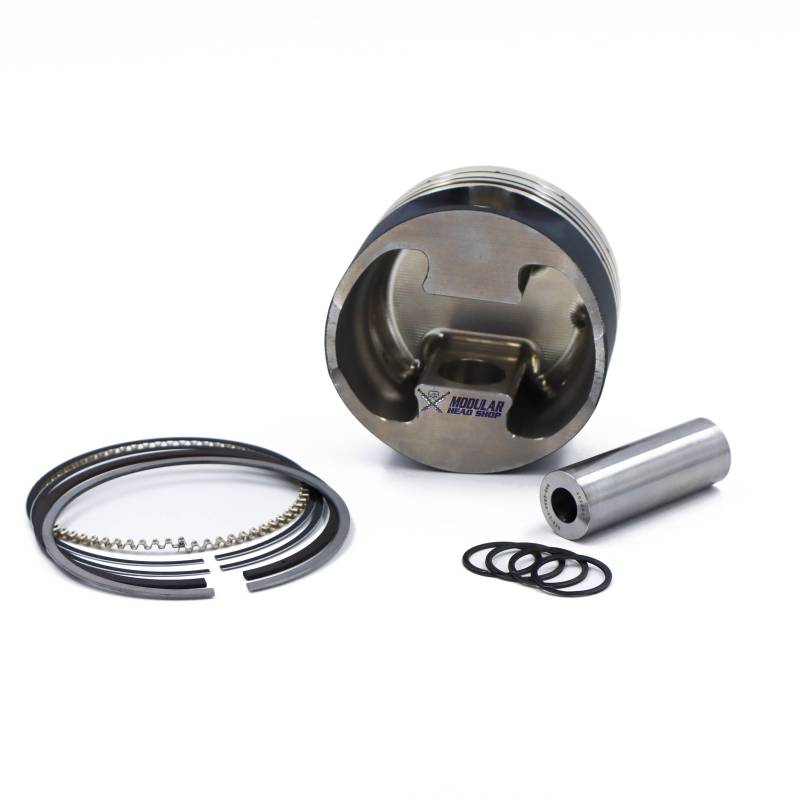

  • 3D Internal Skirt and Undercrown Mill for Lightening
  • Double Broached Pin Oilers
  • 2.500" x .230" Wall Tool Steel Wrist Pins
  • Custom Total Seal AP Steel 1.2mm x 1.5mm x 3mm Ring Set with Napier 2nd Rings





Part Number  MHS-305440
Application Ford 5.4L 4V / GT500 / Ford GT
Bore  3.552"
Stroke  4.165"
Rod Length  6.657"
Compression Height  1.328"
Piston Volume -16cc
Piston Skirt Design  Full Round
Piston Material  2618 Aluminum Alloy
Piston Average Weight  409g
Compression Ratio 10:1 w/ 52cc Chambers, 9.7:1 with 54cc Chambers
Included Wrist Pin JE 866-2500-23-52S
Wrist Pin Material  52100 Tool Steel
Wrist Pin Dimension  .866" x 2.500" x .230" Wall - 146g
Lock Style  Double Spiral Locks
Replacement Lock PN  JE 866-042-CS
Ring Stack  1.2mm x 1.5mm x 3mm
Included Piston Ring Set  Custom Total Seal AP Steel
Piston Ring Details  AP Steel C33 Top, Cast Iron Napier 2nd, 3 Piece Oil
Piston Assembly Reciprocating Weight   575g - Pistons, Pins, Clips and Rings
