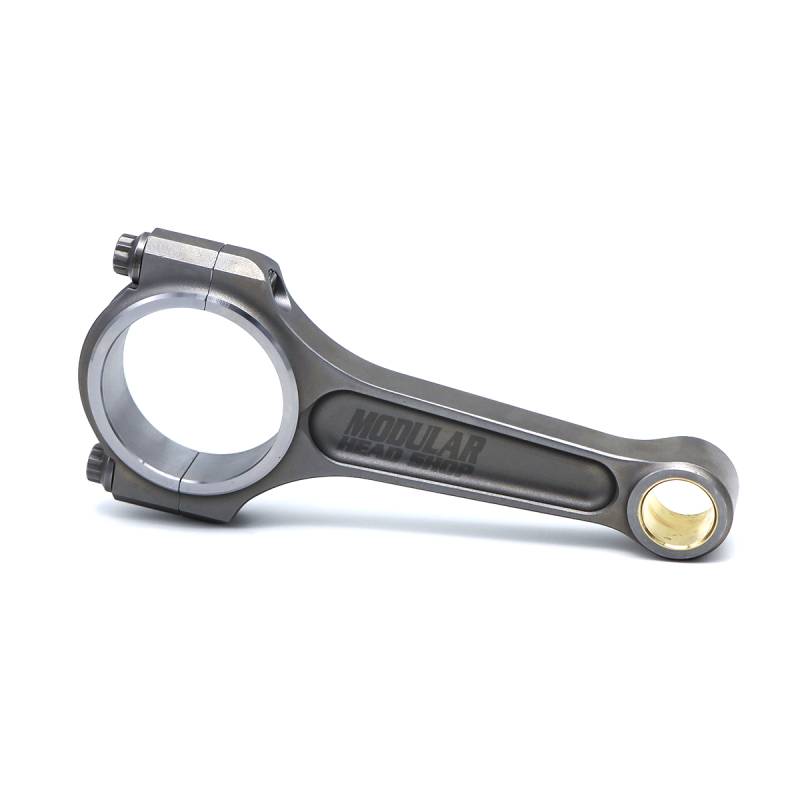

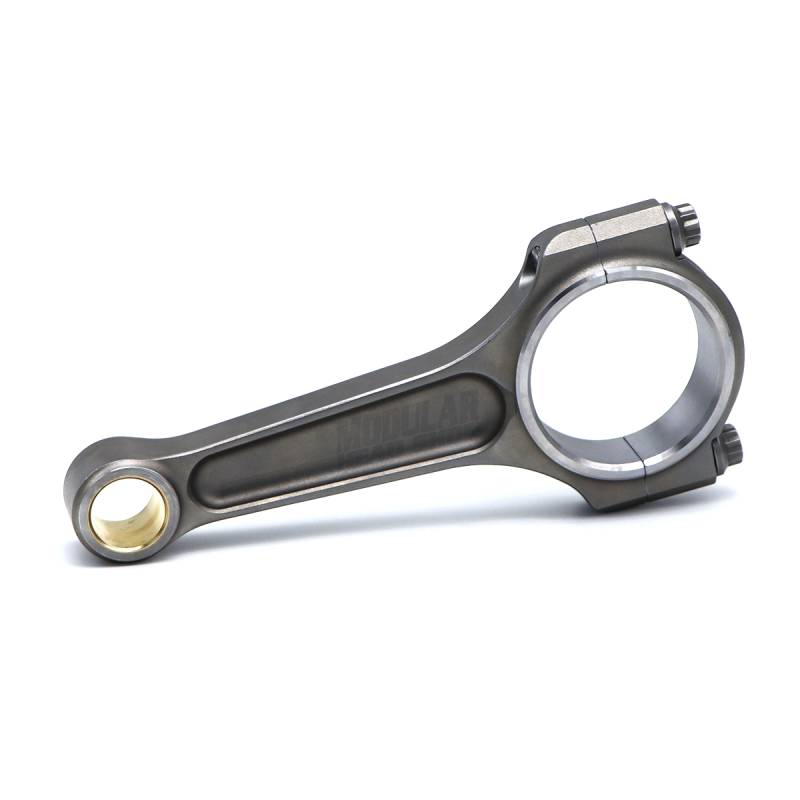

MHS / Dyers 300M I-Beam Connecting Rods for 4.6L / 5.0L Engines
Description
Modular Head Shop Competition 300M I-Beam Connecting Rods for Ford 4.6L / 5.0L Coyote applications. You will not find a finer steel connecting rod for this platform. The big brother to our 300M H-Beams, these I-Beams are designed to be the strongest rods possible while staying well under 700g in total weight.These rods are 100% made in the USA from the forging, to machining, heat treating and finishing. Manufactured to our specs by Dyers Top Rods.
The 300M (4340M) Vacuum melted aerospace provides superior strength over the standard 4340 material and the entire connecting rod design puts the material where it needs it the most without adding a bunch of additional weight. These connecting rods were designed to be the best possible option available for competition use.
- Designed for 2000+ HP , 9500+ RPM !!
- 100% Forged, Machined, and Heat Treated in the USA
- Big End and Pin End Bores finished to extremely tight tolerances
- Excellent option for max effort Drag Racing applications.
| Part Number | MHS-165933 |
| Application | Ford 4.6L / 5.0L Coyote |
| Material | 300M Alloy |
| Length | 5.933" |
| Big End Bore | 2.2396" |
| Wrist Pin Bore | .8670" |
| Big End Width | .938" |
| Pin End Width | .940" |
| Rod Bolts | 7/16" ARP 2000 |
| Big End Weight | 471g |
| Pin End Weight | 196g |
| Total Weight | 667g |
Details
- MHS-165933
- MHS-165933
- Modular Head Shop
- New
Categories
Shipping Information
- Item Requires Shipping
- 15.0 lbs.
- W8.0000” x H6.0000” x L12.0000”
- Free Shipping!
