MHS 4.6L 4V Competition Rod and Piston Combo
Description

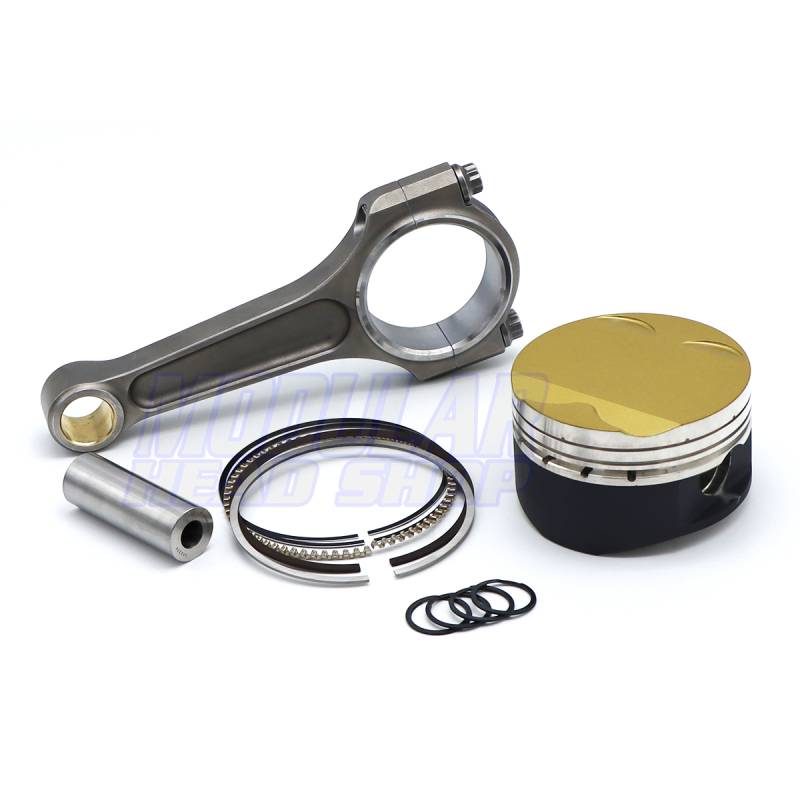

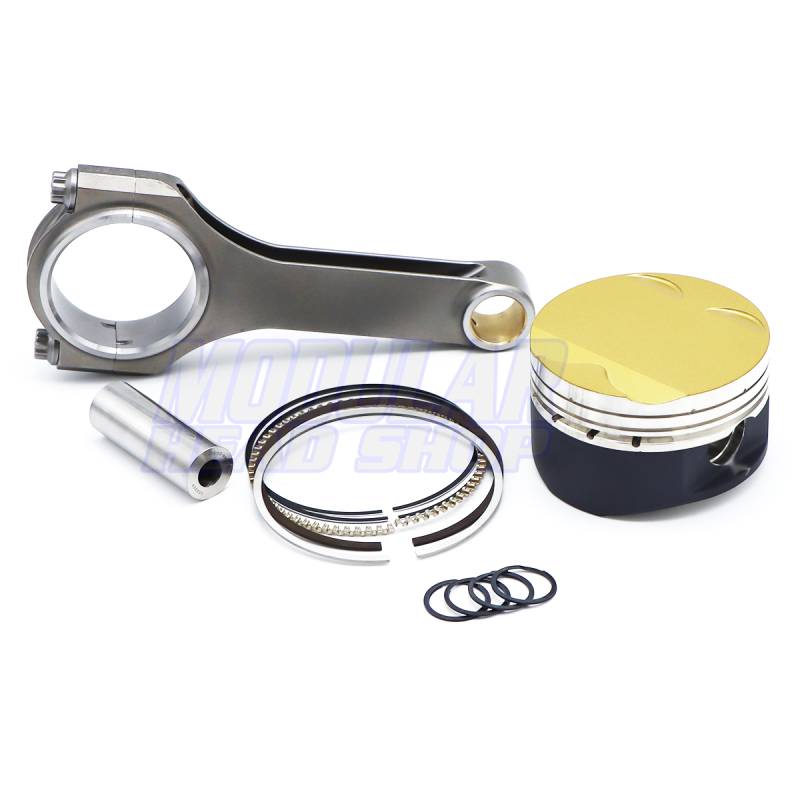

Modular Head Shop 4.6L 4V Competition Rod and Piston Combo
This rod and piston combo is designed for max effort competition 4.6L 4V applications and is the same combo we use in many of our in house builds. An excellent choice for both Turbo and Blower applications.
Available with your choice of our 300M H-Beam or 300M I-Beam Connecting Rods.
Piston Specs:
- MHS-304641
- Manufactured by Wiseco
- 3.562" Bore - .010" Over
- -3cc Flat Top / 10.3:1 Compression
- Full Round 2618 Competition Forging
- .300" Down Top Ring with Max Ring Land Spacing
- Lateral Gas Porting for better Top Ring Seal
- Ceramic Dome Thermal Barrier Coating
- Spray on Moly Skirt Coating
- 3D Internal Skirt and Undercrown Mill for Lightening
- Double Broached Pin Oilers
- 2.500" x .230" Wall Tool Steel Wrist Pins
- Custom Total Seal AP Steel 1.2mm x 1.5mm x 3mm Ring Set with Napier 2nd Rings
Connecting Rod Specs
Manufactured by Dyers Top Rods for MHS
Forged, Machined, Heat Treated and Finished in the USA!
H-Beams | I-Beams | |
Part Number | MHS-155933 | MHS-165933 |
Material | 300M Alloy | 300M Alloy |
Length | 5.933" | 5.933" |
Big End Bore | 2.2396" | 2.2396" |
Wrist Pin Bore | .8670" | .8670" |
Big End Width | .938" | .938" |
Pin End Width | .940" | .940" |
Rod Bolts | 7/16" ARP 2000 | 7/16" ARP 2000 |
Big End Weight | 454g | 471g |
Pin End Weight | 171g | 196g |
Total Weight | 625g | 667g |
Average bobweight with H-Beams - 1752g
Average bobweight with I-Beams - 1812g
We are currently stocking this combo in 3.562" (.010" over bore). Other bore sizes would be made to order.
Want to add a crankshaft or send yours in for balancing? Please contact us with any questions.
